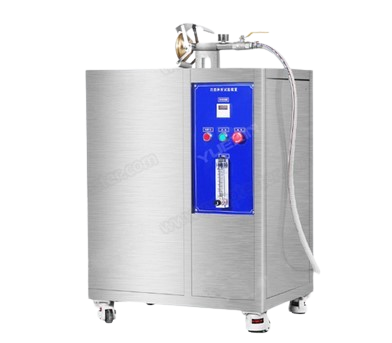

PEGO IPX34AS ອຸປະກອນທົດສອບປາຍພັດ IPX3 ແລະ IPX4 (870mm*600mm*950mm (control box), 370mm*115mm*165mm (spray nozzle))

Outer size (L*W*H)

870mm*600mm*950mm (control box)

370mm*115mm*165mm (spray nozzle)

Spray nozzle diameter: 102mm

Number of holes: 121

Hole diameter: Φ0.5mm

Holes position

1 hole at center

1 inner circles of 12 holes at 300 pitch

4 outer circles of 24 holes at 150 pitch

Outer diameter of water inlet: Φ16mm

Outer diameter of water pipe: Φ28mm

Flow rate: 10L/min±5%

Flowmeter adjustment method: Manual adjustment

Water pressure range: 50-150Kpa

Flowmeter display: Glass flow meter

Capacity of water tank: 150L

Working power: 220V/50Hz

Water source

1. The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet.

2. The faucet is not more than 2 meters away from the equipment

Requirement for the site: The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set

IPX3/4 spray nozzle test equipment can meet the requirement of IEC60529 clauses 14.2.3 and 14.2.4 and figure 5, it is it is apply to verify the protection against spraying water (IPX3) and splashing water (IPX4) for large size sample. The equipment is consisted by spray nozzle, water tank and control box. This equipment is to simulate the raining conditions to check the physical performance of outdoor luminaires, household appliance, auto parts and etc..
