PEGO IPX14B-R600 ຫ້ອງທົດສອບຄວາມຄົບຖ້ວນ IPX1 ຫາ IPX4 (600*600, 800*800*1000 (L*W*H), 1220*1000*1750 (L*W*H))

Tube Radius: R600

Outer size (L*W*H): 750*1500*1950 (mm)

Inner size (L*W*H): 1300*1300*1450 (mm)

Diameter of turntable: Φ600mm

Bearing capacity of turntable: 50KG

Lifting height of turntable: 550-1000mm

Rotation speed of turntable: 1~5r/min

Tilt angle of turntable: 0⁰ or 15⁰  horizontal direction

Turntable rotation method: Forward or forward and reverse alternation

Test time: 0-999min

Weight: Approximate 280kg

Working Power: AC 220V/50Hz, 1KW (single phase)

IPX1-2 Tests

Drip board size: L600mm*W600mm

Aperture of nozzle: Φ0.4mm

Grid pattern: 20*20mm

Delivery rate: IPX1=1mm/min, IPX2=3mm/min

Lifting height of drip board: Fixed

IPX3-4 Tests

Radius of oscillating tube: R600

Delivery rate: IPX3=1.8L/min±5%, IPX4=2.6L/min±5%

Inside diameter of tube: 15mm

Aperture of nozzles: 0.4mm

Spacing of the nozzles: 50mm

120⁰ (IPX3), 350⁰

4s for 2*120⁰, 12s for 2*360⁰

Tube angle: 120⁰ (IPX3), 350⁰ (IPX4) or user-defined

Rotation speed of tube: 4s for 2*120⁰, 12s for 2*360⁰ or user defined

flow control method: Manual control

Material of tube: SUS304 stainless steel

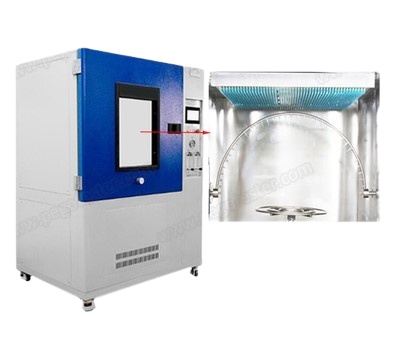

IPX1-4 waterproof test chamber combines the oscillating tube and drip box in one system, it meets the requirement of IEC60529 regarding the IP level IPX1, IPX2, IPX3 and IPX4. The comprehensive test chamber is consisted by oscillating tube, drip board, turntable, water tank, control units (touch screen+PLC), flowmeter and etc.. The oscillating tube, drip board, turntable and walls are made of SUS304 stainless steel. The test chamber is built-in a water tank, the water can be recycled. 4 casters are placed on the bottom of the chamber to make it can be moved easily.
