PEGO HPCS6500 ລະບົບທົດສອບ Spectroradiometer ແລະ Integrating Sphere ສໍາລັບໄຟແສງ LED (380nm-780nm, 0-60V/0-5A)

Test Parameters: wavelength, luminous flux, luminous efficiency, chromaticity coordinates, color rendering index, correlated color temperature, color purity, SDCM, φEb, φEg, φEr, φEfr, φEir, φEc, red ratio, green ratio, blue ratio, voltage, current, power, power factory, harmonic analysis and etc..

Wavelength: 380nm-780nm (customized)

Accuracy of wavelength: ±0.3nm

Optical bandwidth: 2nm (FWHM)

Optical detector: Back-illuminated precision array CCD, made by HAMAMATSU

Integrated time: 10uS-10S

Chromaticity coordinates

Accuracy: ±0.001

Repeatability: ±0.0003 (under illumination A)

Luminous flux

Test range: 0.1lm-20,00,00lm

Accuracy: class 1

photometric linearity: ±0.5%

DC CC and CV power supply

Output: 0-60V/0-5A

Resolution: 0.01V / 0.01mA

Accuracy: ±(0.02% reading+5mV) / ±(0.05% reading+5mA)

Ripple and noise: ≤1mVrms / ≤6mArms

AC power supply

Input: 220V±5%, 50/60Hz

Output power: 750W

Output voltage: 1.0V-150V (L), 151.0-300.0V (H)

Output current: 0-2.5A (H), 0-5.0A (L)

Voltage distortion: ≤2% (THD)

Power Meter

Test range: 3.0-300V / 0.005-20.0A

Accuracy: ±(0.4% reading+0.01% measuring range+1 digit)

Harmonic analysis: total harmonic and 2-50th harmonic component

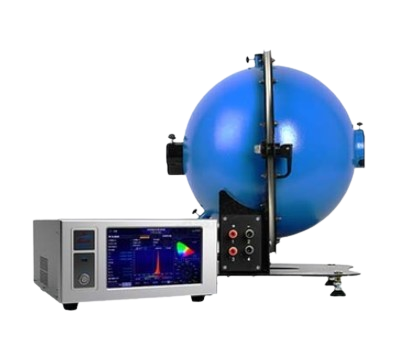

HPCS6500 spectroradiometer and integrating sphere test system is a high accuracy photometry, colorimetry and electricity test system for LED luminaire, which can meet the test requirements of IES LM-79, TM-30:2018 and GB/T24824. The system is consisted by a test device and integrating sphere‍. The test device is a 5 in 1 equipment integrated the functions of spectroradiometer, flicker and start up tester (option), AC power supply, DC power supply and power meter. Configure with 10 inch LCD touch screen, user can operate the test and display the test result directly without computer; configure with software, the test report can be saved in PDF.
