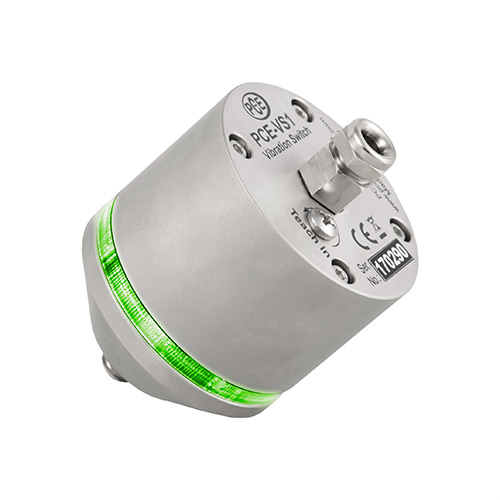

PCE VS11 ສະພາບການຕິດຕາມການສັ່ນເຊັນເຊີສະວິດ (0.1 Hz~10 kHz)
Specifications
Measuring range:0.1 ... 1000 m/s² acceleration
Frequency dependent velocity: 2 ... 1000 or 20 ... 10,000 Hz / 360 lines frequency domain
Monitoring values:Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity
Frequency domain (FFT)
High pass filter:0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity
Low pass filter:0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity
FFT limits: 10 freely selectable frequency intervals with limit amplitudes
Relay output:
PhotoMOS relay; SPST; Max. 60 V / 0.5 A (AC/DC); Open/close programmable; Connection via screw terminals
Teach-in function Warning / alarm
Alarm delay / hold timeButton for measuring the switching threshold
Green and red LEDs: 0 ... 99 s / 0 ... 9 s
Interfaces:
USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
Micro USB port inside
External USB port: No
Power supply voltage: 5 ... 30 V DC; 5 V DC USB; < 100 mA screw terminals
Ingress protection:IP67 rating
Operating temp. range:-40 ... +80 °C / -40 ... +176 °F
Approx. weight:160 g / 0.36 lb
Approx. dimensions:50 mm / 1.97" Ø; 52 mm / 2.05" height
Mounting:M8 thread pin; 8 mm / ≈ 0.32" length; 25 mm / ≈ 0.99" Ø coupling surface
Dilivery Contents
1 x PCE-VS11 condition monitoring vibration sensor switch
1 x USB cable
1 x PC-compatible software
1 x user manual
