PCE VM 5000 ສະພາບການຕິດຕາມເຄື່ອງວັດແທກການສັ່ນສະເທືອນ
Specifications
Display:82 mm x 61 mm / 3.22 in x 2.4 in ("), LCD display with background lights
Number of channels:4 input channels
Measuring types:speed, acceleration, expansion
Units:acceleration: m/s², g, ft/s²
speed: mm/s, sm/s, inches/s
expansion: mm, inches
Frequency ranges:10 Hz ... 1 KHz
Zero-function:Keypress activation for acceleration (rms) measurement
Datalogger Scan Rate:Automatic: 1 ... 3600 seconds
Manual: by pressing key
Memory Card:SD Memory card (1 ... 16 GB)
Data Hold Function:Holds Indicated Value
Audio Output:
Mini-Stereo Plug,
max. voltage: 2 V
output resistance: 100 Ohm
Operation Temperature:0 ... +50 °C / 32 ... 122 °F
Operation Humidity:85% R.H. max.
Power Supply:8 x 1.5 V AA batteries or 9 V AC adapter
Power Consumption:NiMH Rechargeable battery 3 x 2700 mAh
Operation / Charging time:
Standard Operation: approx. 12 mA dc
Without background lights and switched off data logger: approx. 35 mA dc
Weight:Meter: 515 g / 1.1 lbs
Dilivery Contents

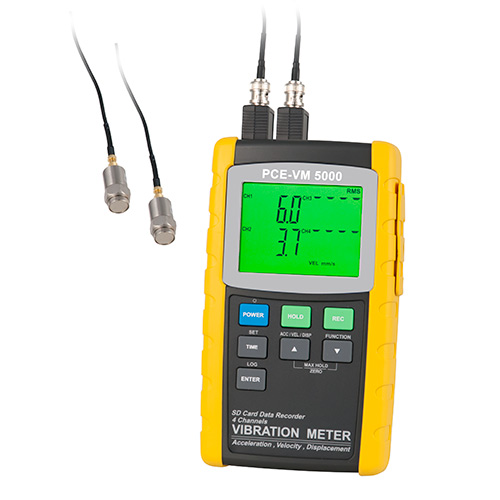

1 x 4-channel PCE-VM 5000 Vibration Meter
2 x Sensors with cable and magnet foot
1 x SD card
8 x 1.5 V AA batteries
1 x Instruction manual
1 x Transportation case
