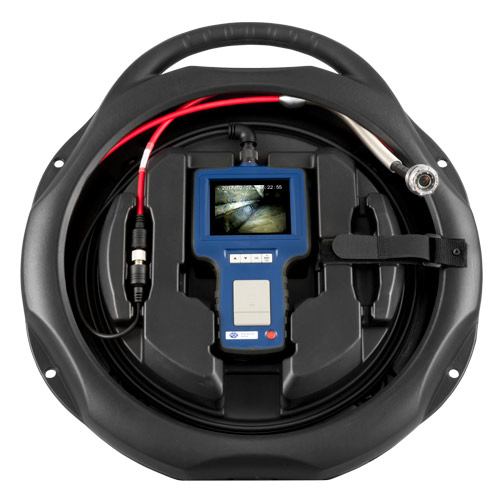

PCE VE 390N ກ້ອງກວດກາທໍ່ລະບາຍນ້ຳ ແລະທໍ່ລະບາຍນ້ຳ
Specifications
Cable diameter:28 mm / 1.11 in
Cable length: 10 m / 32.8 ft
Depth of field: 10 mm … ∞ / 0.4 in to infinity
Field of view:150.8°
Bending radius:90 mm / 3.54 in.
Illumination:8 LEDs
Image sensor:CMOS / 640 x 480
Picture rate:30 / sec.
Display: 88.9 mm / 3.5 in TFT LCD monitor
Interface:Mini USB 1.1 / AV out
Storage options:Image or video
Storage:8 GB memory card (can be increased to 32 GB)
Compression format:MPEG 4
Picture format:JPEG (640 x 480)
Video output format:NTSC / PAL
Video format:ASF (320 x 240)
Operation and storage temperature:-10 ... 60°C / 14 ... 140°F
Voltage supply:Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device:207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case:9.98 kg / 22 lbs
Protection type, camera:IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft
Dilivery Contents
1 x PCE-VE 390N chimney and drain inspection camera
1 x Centering brush
1 x SD card
1 x USB cable
1 x Battery charger
1 x Carrying case
1 x User manual
