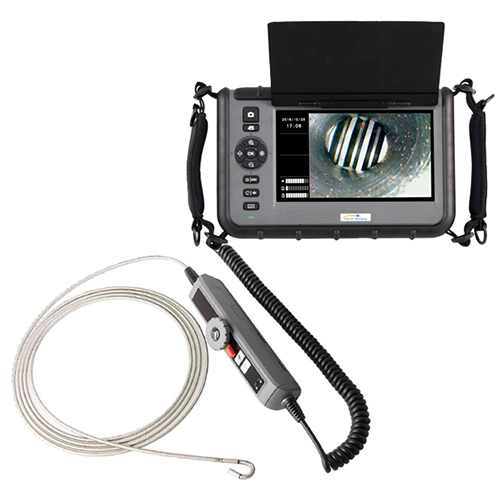

PCE VE 1034N-F Borescope ອຸດສາຫະກໍາ
Specification
Display:7" LCD (800 x 480)
Image resolution: 640 x 480 JPEG
Video recording: 640 x 480 MPEG (with sound recording)
Drop test: 1 m / 3.3 ft
Power supply: Li-Ion rechargeable battery
Interface: USB
Image and video storage: On SD card (maximum 32 GB)
AV output: NTSC / PAL
Audio input: Built-in microphone
Brightness adjustment: 10-step adjustable on the main unit
Runtime per battery charge: 5 hours
Battery charging time: 3 hours
Charging temperature: 10 ... 40°C / 50 ... 104°F
Operating temperature: 0 ... 60°C / 32 ... 140°F
Storage temperature: 0 ... 60°C / 32 ... 140°F
Protection class: IP57
Dimensions: 240 x 154 x 47 mm / 9.4 x 6 x 1.9 in
Weight: 1.3 kg / 2.9 lb
Cable length: 3 m / 9.8 ft
2-way borescope cable90°
Functions on the control unit of the cable:
Lighting improvements
360° rotation in 90° increments
Change of lighting for mirror use
Camera head locking
Keylock
Lighting: 5 white LEDs on camera head
Camera head length: ca. 13 mm / 0.5 in
Camera head material: Stainless steel
Camera head diameter: 4.5 mm / 0.18 in
Resolution: VGA (640 x 480)
Depth of field: 10 ... 60 mm / 0.4 ... 2.4 in
Operating and storage temperature: -20 ... 60°C / -4 ... 140°F
Protecton class: IP67
Video output: NTSC
Viewing angle: 135°
Control unit dimensions: 228 x 35 x 53 mm / 9 x 1.4 x 2.1 in
Weight: ca. 400 g / ca. 14 oz.
Delivery contents
1 x Industrial Borescope PCE-VE 1034N-F
1 x SD memory card (8 GB)
1 x Cleaning kit for camera head
1 x USB cable
1 x Power supply for monitor
1 x Video cable
1 x Robust plastic case
