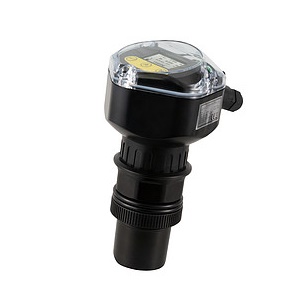

PCE ULM 10 ເຄື່ອງວັດແທກລະດັບ Ultrasonic (0 ... 10 m / 0 ... 32,8 ft; 0,5%)
Specifications:
Measuring range0 ... 10 m / 0 ... 32.8 ft*
Accuracy0.5%
Resolution0.001 m
Minimum distance to the wall1 m / 3.3 ft
Resolution of the temperature display 0.1°C / 0.18
Output4 ... 20-mA
Output signal resolution0.01-mA
Connection2-wire, PE
Power supply24V DC
Protection classIP 66
connecting threadM60
Connection thread cable glandsM18 x 1.5
Environmental conditions-20 ... 60°C / -4 ... 140°F
Dimensions110 x 140 x 215 mm / 4.3 x 5.5 x 8.5 in
WeightApprox. 825 g / 1.8 lbs
*The measuring range only applies under the following conditions:
-The measuring medium is a liquid
-There are no turbulences
-There are no dusts or vapors between the medium and the sensor
-The temperature difference between the sensor and the medium is < 20°C / 68°F
Delivery Scope
1 x Ultrasonic level indicator PCE-ULM 10
1 x Instruction manual
