Specification
Technical Data of Tachometer Stroboscope PCE-T 260 Optical Tachometer
Measuring range:5 ... 99999 rpm
Resolution:0.5 rpm (< 1000 rpm) 1 rpm (>1000 rpm)
Accuracy :±0.05% + 1 Digit
Distance to the measuring object:50 ... 150 mm / 2 x 5.9 in, max. 300 mm / 12 in (depending on ambient light)
Technical Data of Tachometer Stroboscope PCE-T 260 Contact Tachometer
Measuring range:0.5 ... 19999 rpm
Resolution:0.5 rpm (< 1000 rpm)
1 rpm (>1000 rpm)
0.05 m/min (<100 m/min)
0.1 m/min (>100 m/min)
Accuracy :±0.05% + 1 Digit
Technical Data of Tachometer Stroboscope PCE-T 260 Stroboscope
Measuring range:100 ... 99990 FPM
Resolution:
0.1 FPM (< 1000 FPM)
1 FPM (1000 ... 30000 FPM)
5 FPM (30000 ... 50000 FPM)
1 FPM (50000 ... 99990 FPM)
Accuracy:±0.1% + 2 Digit
Flash lamp:3 x LED (red)
Technical Data of Tachometer Stroboscope PCE-T 260 Temperature Type K
Measuring range:-100 ... 1300°C / 148 ... 2372°F
Resolution:0.1°C
Accuracy (device only):
±0.4% + 1°C / 33°F (-100 ... -50°C / -148 ... -58°F)
±0.4% + 0.5°C / 32°F (-50 ... 1300°C / -148 ... 2372°F)
Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature PT 1000
Measuring range:-10 ... 70°C / 14 ... 158°F
Resolution:0.1°C / 32°F
Accuracy (device only):±1.2°C / 34°F
Technical Data of Tachometer-Stroboscope PCE-T 260 Temperature IR
Measuring range:-30 ... 305°C / -22 ... 581°F
Resolution:0.5°C / 33°F
Accuracy :±3% or ±3°C / ±37°F
Emissivity0.95 fixed
Spectral range6 ... 14 µm
Optical resolution3:1
General Specifications of Tachometer Stroboscope PCE-T 260
Display:5 Digits LCD
Interface:RS 232
Power supply:4 x 1.5V AA (UM-3) / Power supply DC 9V
Power consumption:ca. 52-mA
Environmental conditions:0 ... 50 °C / 122°F < 80 % rH.
Memory:Last value, Min, Max
Dimensions:207 x 67 x 39 mm / 8.1 x 2.6 x 1.5 in
Weight:255 g / < 1 lb without batteries
Delivery contents

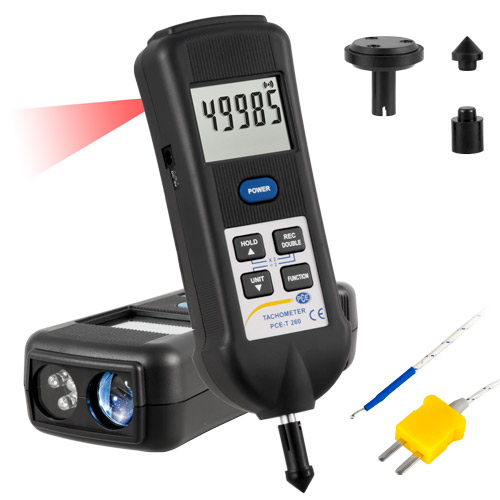

1 x Handheld Tachometer PCE-T 260
1 x Measuring adapter
2 x Measuring tip (internal and external cone)
1 x Measuring wheel
1 x Reflective tape (600 mm)
1 x Carrying case
1 x Instruction manual
