Measuring range: Rz: 0.02 μm ... 320 μm; Ra, Rq: 0.005 μm ... 32 μm
Accuracy: ± 10%
Repeatability: ± 7%
Resolution:
± 20 μm: 0.01 μm
± 40 μm: 0.02 μm
± 80 μm: 0.04 μm
Measurement Parameters: Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Measurement Standards: ISO4287, ANSI b46.1, DIN4768, JISb601
Graphic:
Primary profile (roughness + waviness)
Roughness profile (roughness)
Loading curves
Measuring filter: RC, PC-RC, Gaus, DP
Measuring section (Cut Off):0.25 mm, 0.8 mm, 2.5 mm
Measuring length:
1 ... 5* measuring path
Max. 17.5 mm (including pre- and post-run)
Sensor:
Diamond probe tip 90°
5 μm
Contact force sensor: <4 mN
Feed rate :
0.25 mm: 0.135 mm / s
0.8 mm: 0.5 mm / s
2.5 mm: 1 mm / s
Display: 3.5" LCD screen
Power supply:
3.7V Li-Ion Battery
5V / 800-mA USB Power Adapter
Operating time: 50 h
Operating conditions: -20 ... 40°C / -4 ... 104°F, max. 90% rh
Storage conditions: -40 ... 60°C / -40 ... 140°F, max. 90% rh
Dimensions:
Main unit: 158 x 55 x 52 mm / 6.2 x 2.2 x 2 in
Motor unit: 115 x 23 x 27 mm / 4.5 x 1 x 1.1 in
Weight: About 500 g / 1.1 lbs
Delivery Scope:

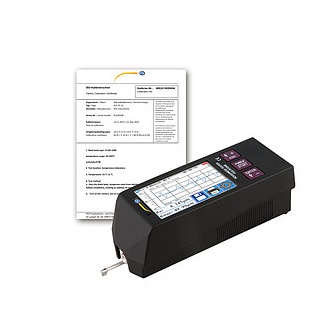

1 x Roughness tester PCE-RT 2300
1 x Microprobe
1 x Removable motorized sensor
2 x Connection cable for motor unit
1 x Charger
1 x Interface cable
1 x Transport case
1 x Manual
