PCE PCE-VT 204 ສະພາບການຕິດຕາມເຄື່ອງວັດແທກການສັ່ນສະເທືອນ
Measurement Range
Acceleration: 0.5 to 199.9 m/s²
Velocity: 0.5 to 199.9 mm/s
Displacement: 0.005 to 1.999 mm
Resolution
Acceleration: 0.1 m/s²
Velocity: 0.1 mm/s
Displacement: 0.001 mm
Accuracy
Acceleration: ±5% ±2 digits
Velocity: ±5% ±2 digits
Displacement: ±5% ±2 digits
Frequency Range: 10 Hz to 1 kHz
Rotational Speed Measurement (RPM)
Measurement Range
Rotational Speed (Optical): 10 to 99,999 rpm
Rotational Speed (Contact): 0.5 to 19,999 rpm
Speed: 0.05 to 1,999 rpm
Resolution
0.1 rpm (<1,000 rpm)
0.01 m/min (<100 m/min)
0.1 m/min (>100 rpm)
Accuracy: ±0.05% of reading ±1 digit
Measurement Distance: 50 to 1,500 mm (depending on the surface)
General Specifications
Internal Memory: 1,000 measurement results
Interface: RS-232
Display: LCD
Power Supply: 4 × AA batteries
Dimensions: 188 × 76 × 47 mm
Operating Conditions: 0 to 50°C / <80% RH
Weight: 400 g

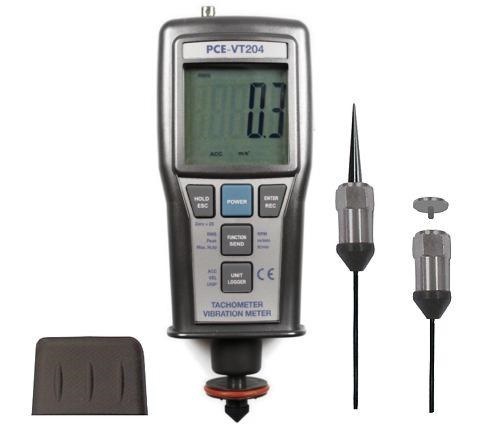

Package Includes
1 × PCE-VT 204
1 × Flat sensor with 1.5 m cable / 0.04
1 × 70 mm / 2.8" needle sensor
1 × Magnetic base
1 × Contact rotational speed sensor
1 × 600 mm / 23" reflective tape
1 × Carrying case
4 × Batteries
1 × User manual
