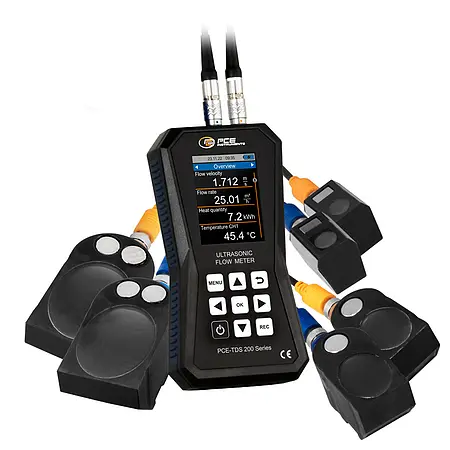

PCE PCE-TDS 200 SML Ultrasonic Flow Meter (±32 m/s)
Measuring range: ±32 m/s
Accuracy: 0.001 m/s
Accuracy (DN ≥50 mm): ±1.5% rdg. (>0.3 m/s)
Accuracy (DN <50 mm): ±3.5% rdg. (>0.3 m/s)
Reproducibility: ±0.5%
Sensor (PCE-TDS 200 S): Pair
Pipe diameter (S): DN 15…100 / 20…108 mm
Temperature resistance (S): -30…160 °C
Dimensions (S): 45 × 30 × 30 mm
Sensor (PCE-TDS 200 M):
Pipe diameter (M): DN 50…700 / 57…720 mm
Temperature resistance (M): -30…160 °C
Sensor (PCE-TDS 200 L):
Pipe diameter (L): DN 300…6000 mm
Dimensions (L): 91 × 52 × 44 mm
Measuring method: Z, V, N, W
Medium: water, sea water, oil, crude oil, methanol, ethanol, diesel, petrol, petroleum, user-defined
Impurity: <5%
Pipe material: copper, steel, stainless steel, aluminium, brass, cast iron, iron, nickel, titanium, zinc, acrylic, PE, PP, PVC, nylon, user-defined
Inner pipe lining: none, epoxy, rubber, mortar, PS, PE, PTFE, PU, PP, user-defined
Measurement parameters: flow velocity, volume flow, volume
Units (length): mm, in
Units (velocity): m/s, ft/s
Units (flow): m³, l, gal, igl, mgl, cf, bal, ib, ob
Time units: s, min, h, d
Units (volume): m³, l, gal, igl, mgl, cf, bal, ib, ob
Display: 2.8" LCD
Menu: metric / imperial
Languages: DE, EN, FR, ES, IT, NL, PT, DK, TR, PL, RU, CN, JP
Operating conditions: -20…+65 °C; 10…95% RH
Data logger: 32 GB / 10 million points
Interface: USB
Protection class: IP52
Power supply: Internal LiPo (3.7 V, 2500 mAh) / External USB 5 V
Operating time: ~10 h
Dimensions: 165 × 85 × 32 mm
Weight: 255 g
Delivery scope: Main unit, S/M/L sensors (pairs), cables, cable ties, power supply, USB-C cable, ultrasonic gel, measuring tape, case, manual
