| Flow measurement | |
| Measuring range | ±32 m/s |
| Accuracy | 0,001 m/s |
| Genauigkeit | DN ≥50 mm: ±1.5 % f.s. for velocities > 0.3 m/s |
| | DN <50 mm: ±3.5 % f.s. for velocities > 0.3 m/s |
| Reproducibility | ±0.5 % of measured value |
| | |

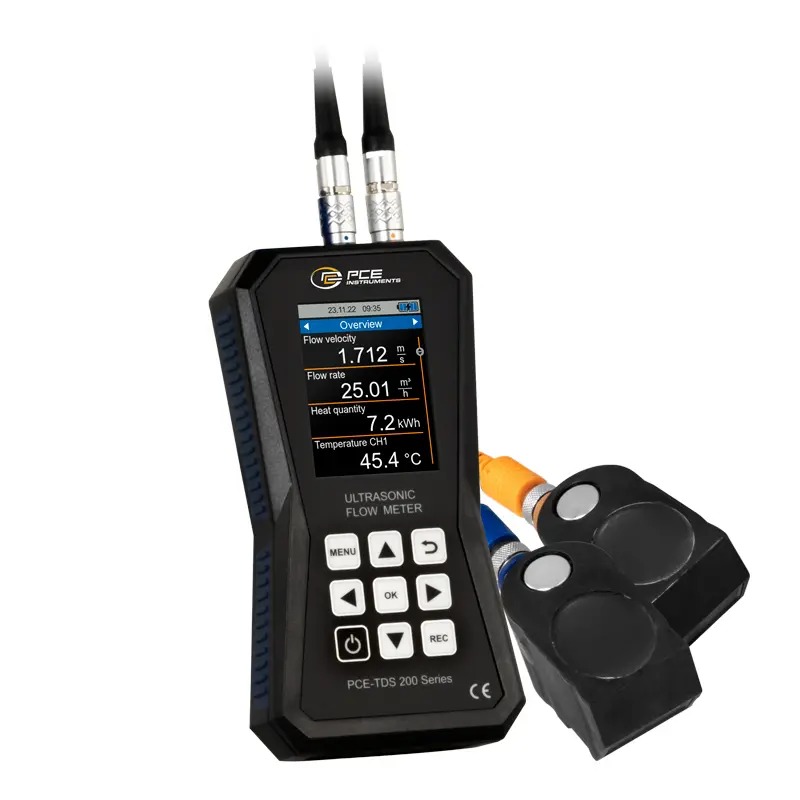

| PCE-TDS 200 M SENSOR | Sensor pair |
| Pipe diameter | DN 50 ... 700 / 57 ... 720 mm |
| Temperature resistance | -30 ... 160 °C |
| |
| | |
| Measuring method | Z, V, N, W |
| Medium | - water |
| | - sea water |
| - oil |
| | - crude oil |
| | - methanol |
| | - ethanol |
| | - diesel |
| | - petrol |
| | - petroleum |
| | - user defined |
| | (manual input of the sound velocity from the medium) |
| | |
| All liquids with an impurity | <5 % |
| Pipe material | - copper CU |
| | - steel FE |
| | - stainless steel VA |
| | - aluminium AL |
| | - brass ME |
| | - cast iron CI |
| | - iron FE |
| | - nickel NI |
| | - titanium TI |
| | - zink ZI |
| - acrylic AC |
| | - polyethylene PE |
| | - polypropylene PP |
| | - polyvinyl chloride PVC |
| | - nylon NY |
| | - user defined |
| (manual input of the transversal sound velocity |
| | of the pipe material) |
| | |
| Inner pipe lining | - no lining |
| | - user defined |
| | - epoxy resin |
| | - rubber |
| | - mortar |
| | - polystyrene PS |
| | - polyethylene PE |
| | - polytetrafluoroethylene PTFE |
| - polyurethane PU |
| | - polypropylene PP |
| | - user defined |
| | (manual input of the longitudinal sound velocity |
| | of the inner lining of the pipe) |
| | |
| Measurement parameters | flow velocity, volume flow and volume |
| Units (dimensions) | mm, in |
| Units (flow velocity) | m/s, ft/s |
| Units (volume flow) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Time specification | seconds, minutes, hours, days |
| Units (volume) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| | |
| Further specifications |
|
| 2.8" LCD | 2,8“ LCD |
| Menu | metrisch / imperial |
| Menu languages | German, English, French, Spanish, |
| | Italian, Dutch, Portuguese, Danish, Turkish, Polish, German |
| | Turkish, Polish, Russian, Chinese, Japanese |
| Operating and storage conditions | Temperature: -20 ... +65 °C |
| | Humidity: 10 ... 95 % r. h., non-condensing |
| Data logger | 32 GB memory capacity / 10 million measuring points |
| Unterface | USB (for online measurement, readout of the internal memory |
| | memory and for recharging the battery) |
| Protection class | IP52 |
| Power supply Internal | Internal: LiPo battery (3.7 V, 2500 mAh) |
| | External: USB 5 VDC, 500 mA |
| Operating time | approx. 10 h |
| Dimensions | 165 x 85 x 32 mm |
| Weight | 255 g |
| | |
