Specification
Function: Measurement range; Accuracy; Resolution
Measurement of real power (AC, real value of power), direct measurement: 1 W ... 6 kW; 1 W; ±1,5 % + 1 dgt.
Measurement of real power (AC, real value of power), with adaptor ext. or current converter: 1 W ... 999,9 kW; 1 W; ±1,5 % + 1 dgt.
Measurement of apparent power (AC): 0.01VA to 9.999kVA; 0.01VA; ±1.5% +1 digit
Power factor (cos φ): 0.00 to 1.00; 0.01; ±1.5% +2 digit
KWh counter: 0.001Wh to 9,999kWh; 0.001Wh; ±1% +1 digit
ACV / DCV: 0.1V to 600V; 0.1 / 1V; ±1% +1 digit
ACA eff/rms
DCA eff/rms: direct maximum 10A; 10mA, with induction head max. 1,000A;1A; ±1% +1 digit
ACA with clamps: up to 2,000A (depending on clamps)
Frequency: 10.0 to 999Hz; 0.1Hz; 1% +1 digit
Ohms: 1 Ω to 19.99kΩ; 1 / 10 Ω; ±1% +1 digit
Display: 93 x 52mm multi functional LCD
Operating conditions: max. 80% r.h. / 0 to 50°C / 32 to 122°F
Power: 6 AA batteries or mains adaptor
Dimensions: 280 x 210 x 90 mm / 11 x 8.2 x 3.5 in
Weight: 1,600 g / 56.4 oz
Delivery contents

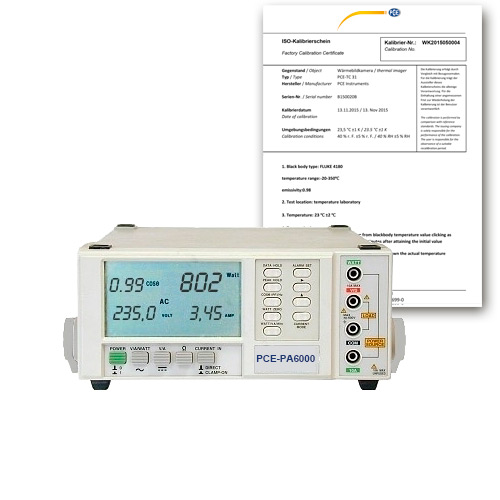

1 x PCE-PA6000 power Analyser
1 x Set of test cables
1 x RS-232 cable
1 x Software
6 x Batteries
1 x User's manual
1 x ISO Calibration Certificate
