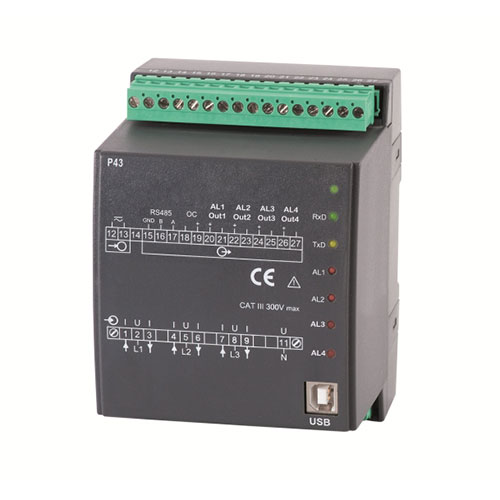

PCE-P43 Power Analyzer

Manufacturer: PCE-UK

Model: PCE-P43

Warranty: 12 months

Technical specifications

Measuring size:Measuring RangeAccuracy of Mb.

Alternating current

(L1, L2, L3):1 A AC;

5 A AC± 0.2 %

AC voltage

(L1, L2, L3):2,9 ... 276 V AC (L-N);

10 ... 480 V AC (L-L)± 0.2 %

± 0.5 %

Frequency

(L1, L2, L3):47 ... 63 Hz;±0.1 %

Active power

(L1, L2, L3, ∑):-1.65 ... 1.65 kW;± 0.5 %

Reactive power

(L1, L2, L3, ∑): -1.65 ... 1.65 kvar;± 0.5 %

Apparent power

(L1, L2, L3, ∑):1.4 VA ... 1.65 kVA;± 0.5 %

Tan (phi)

(L1, L2, L3, ∑):-1.2 ... 1.2;± 1 %

Power factor:

(L1, L2, L3, ∑)-1 ... 1;± 0.5 %

Active energy

(created / submitted)

(∑):0 ... 99,999,999.9 kWh;± 0.5 %

Reactive energy

(capacitive / inductive)

(∑):0 ... 99,999,999.9 kvarh;± 0.5 %

THD:0 ... 100 %;± 5 %

Output (numberselectable / max. 4):-20 ... 20 mA

Relay output (numberselectable / max. 4):Turnkey: 250 V / 0.5 A AC

Pulse outputOpen collector, passive,

Meets EN62053-31;

5000 ... 20000 Imp/kWh progammable

Interface:RS485 Modbus RTU 8N1, 8N2, 8E1, 8O1

Programming interface:USB Modbus RTU 8N2

Dimensions:45 x 100 x 120 mm

Weight:300 g

Degree of protection:IP40

Power supply (optional):85 ... 253 V AC / DC;

20 ... 50 V AC / DC

Operating conditions:-10 ... 55 °C;

0 ... 95 % r.F.

Storage conditions:-30 ... 70 °C;

0 ... 95 % r.F.

Measurement category:CAT III / 300 V

Dilivery Contents

1 x 3-Phase-Power Meter PCE-P43

1 x User manual
