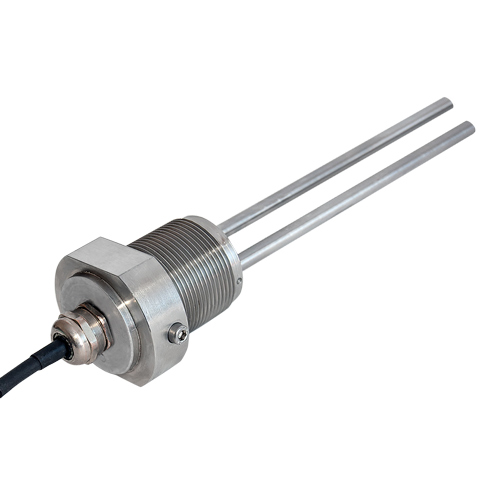

PCE MWM 230 ເຊັນເຊີຄວາມຊຸ່ມຊື່ນຢ່າງແທ້ຈິງ

Specification

Measurement range:0 ... 100 %

Limits of permissible absolute error of the measurements results of the mass fraction of waterΔ= 0.02 +0,025·W

Range of working temperatures:0 ... +90 °C (industrial version); 0 ... +115 °C (extended temperature range)

; 0 ... +250 °C (drying kilns)

Operation mode:continuous operation

Measurement period:0.3 ... 1.5 s

Voltage supply - Rated / - Allowable:24 (18 ... 36) VDC

Consumption current, not more than:200 mA

Input power:<0.1 W

Warm-up time at start-up:30 min

Output:RS 485 Modbus RTU, 4-20 mA [RS485: max. cable length 1,000 m; 4-20 mA: max. cable length 100 m (max. cable length to SPS unit)]

Input:digital 24 VDC

Dimension of the sensor, length:L 200 ... 1000 mm, Ø 15 ... 30 mm

(depending on the variant)

Protection class:IP54

mass:5 kg
