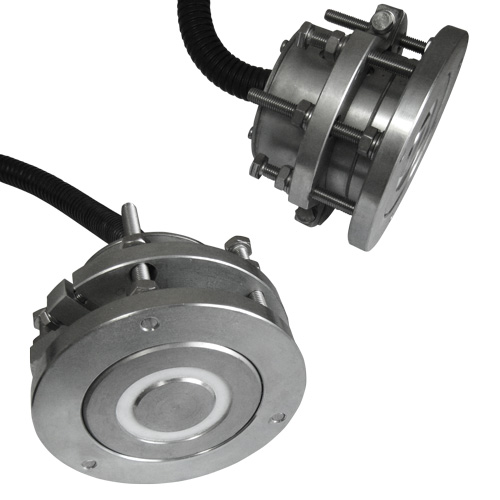

PCE MWM 210 ເຊັນເຊີຄວາມຊຸ່ມຊື່ນຢ່າງແທ້ຈິງ

Specification

Measuring Range:0 ... 100 %

Maximum permissible error (absolute):Δ= 0.035 +0.05·W

Operating temperature range:-20 ... +80 °C / -4 ... 176 °F

Working mode:continuous operation

Measuring interval:1 s

Power supply:24 (18 ... 36) VDC

Current consumption:200 mA

Warm-up time (start-up):90 min

Outputs:RS 485 Modbus RTU, 4-20 mA [RS485: max. cable length 1000 m; 4-20 mA: max. cable length 100 m (max. cable length to SPS unit)]

Inputs:2 x digital 24 VDC

Dimensions (sensor):164 х 120 mm / 6.4 x 4.7 in

Dimensionen: (electronics unit):255 х 170 x 60 mm / 10 x 6.6 x 2.3 in

Protection (sensor):IP67

Protection (electronics unit):IP54

Weight (sensor):3.5 kg
