- Leakage current and current (AC A):
Measurement ranges: 50 / 60 Hz; 40-mA; 400-mA; 4 A; 40 A; 80 A; 80 A -100A
Resolution: 400 Hz ... 1 kHz; 10 µA; 100 µA; 1-mA; 10-mA; 10-mA; 100-mA
Accuracy: ± (1% + 0.5-mA); ± (4.5% + 0.5-mA); ± (3% + 5-mA); ± (3% + 5-mA); ± (4% + 0.1-mA); ± (4% + 0.1 A)
± (4% + 1 A); ± (4% + 1 A); ± (2.5% + 1 A); ± (3% + 1 A); ± (5% + 1 A); ± (5% + 1 A)
- Voltage (AC V):
Measurement ranges: 50 / 60 Hz; 400V
Resolution: 400 Hz ... 1 kHz; 1V
Accuracy: ± (1.5 % + 2 digits); ± (2 % + 4 digits)
General Technical Specifications:
Display: 3 3/4
Measured electrical properties: AC V, AC A, resistance
Security standards: CAT III 300V / CAT II 600V
Diameter of the clip: 30 mm
Input impedance: 10 MΩ
Registration rate: 2 Hz (numerical values), 20 Hz (bar graph)
Operating temperature: -10 ... 50ºC / 14 ... 122ºF
Operating humidity: <85% H.r.
Storing temperature: -20 ... 60ºC / -4 ... 140ºF
Auto shut-off: After 30 minutes
Power: 9 V battery
Input current: 10-mA
Weight: 200 g / < 1 lb
Dimensions: 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in
Delivery scope:

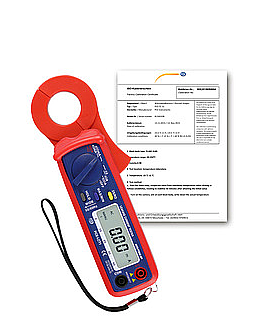

1 x PCE-LCT 1 Clamp Meter
1 x 9 V battery
2 x test cables
1 x carrying case
1 x user's manual
