PCE IR10 ເຄື່ອງວັດແທກອຸນຫະພູມ (-40~600°C, ± 1%)

Specification

Electronic parameters

Outputs

Analogue: 4 ... 20-mA, 0 ... 20-mA,

0 ... 5V (adjustable), Type-J or K sensors

Temperature sensor head 10 mV / °C or °F alarm

Relay (via software) optional digital outputs USB,

RS-232, RS-485, relay

Inputs:Emissivity, temperature compensation, trigger (by software)

Cable length:1 m / 3.3 ft, other lengths can be ordered separately

Consumption:Max. 100-mA

Power:8 ... 36V DC

General parameters

Ingress protection:IP65 (NEMA-4)

Operating temperature for Sensor head:-20 ... 180°C / -4 ... 356°F

Storage conditions:-40 ... 85°C / -40 ... 185°F

Operating relative humidity:10 ... 95% without condensation

EMI:IEC 801-3, level 3 (maximum cable length of 3m)

Weight

Sensor head:40 g / .09 lb

Electronic component:420 g / < 1 lb

Technical parameters

Temperature range:40 ... 600°C / 104 ... 1112°F

Spectral range:8.0 ... 14 µm

Optical resolution 1:15:1

Accuracy 2:± 1% or ± 1°C3 / 1.8°F3

Repeatablility:± 0.5% or ± 0.5°C3 / 0.9°F3

Temperature coefficient:± 0.05°C / 0.09°F, °C / °F or ± 0.05% / °C3 °F3

Temperature resolution:0.1°C5 / 1.8°F5

Response time:150 ms (95%)

Emissivity:0.100 - 1.000 adjustable in digital mode, by units of 0.001

Functions:Maximum, minimum Hold and average value

1 90% of energy

2 at an operating temperature of 23°C / 73°F, ± 5°C / 9°F

3 shighest value is considered correct

4 ISO calibration certificate based on the NIST / DKD measurement

5 for a temperature margin of 300K

Delivery contents

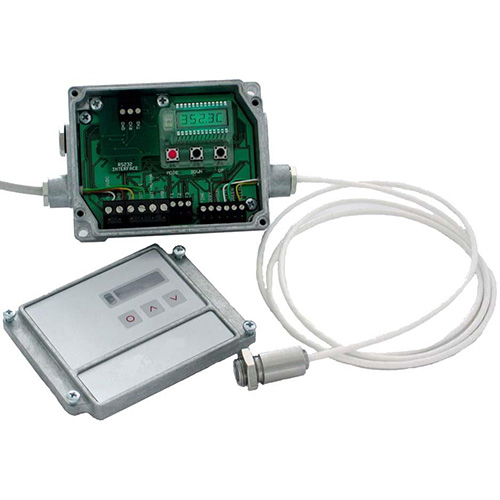

1 x Pyrometer PCE-IR 10 with sensor
