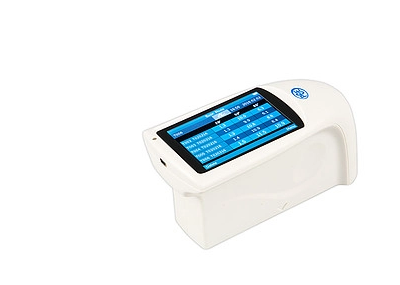

PCE IGM 100 Gloss Meter
Specifications:
Measuring geometries:20° / 60° / 85°
Display:3.5 in TFT touch display (320 x 480 Pixel)
Standards:
ISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457
Measuring surface:
20° : 10 x 10 mm / .4 x .4 in
60° : 9 x 15 mm / .4 x .6 in
85° : 5 x 36 mm / .2 x 1.4 in
Measuring range:
20° : 0 ... 1000 GU
60° : 0 ... 1000 GU
85° :0 ... 160 GU
Readability:0.1 GU
Repeatability:
Measuring range 0 ... 10 GU: ±0.1 GU
Measuring range 10 ... 100 GU: ±0.2 GU
Measuring range 100 ... 1000 GU: ±0.2 GU (%)
Reproducibility:
Measuring range 0 ... 10 GU: ±0.2 GU
Measuring range 10 ... 100 GU: ±0.5 GU
Measuring range 100 ... 1000 GU: ±0.5 GU (%)
Chromaticity:Meets CIE 1931 (2°) under a CIE C - light source
Measurement accuracy:±1.2 / ±1.2%
Measuring time:1 second
Dimensions:160 x 75 x 90 mm / 6.3 x 3 x 3.5 in
Weight:350 g / < 1 lb
Menu language:English, Chinese
Power supply:3200-mAh Li-ion rechargeable battery
Interface:USB / RS-232
Measurement memory
Based measurement: 1000
Statistical mode: 5000
Continuous measurement: 5000
Software:Included in delivery
Ambient temperature:0 ... 40°C / 32 ... 104°F
Storage temperature:-20 ... 50°C / -4 ... 122°F
Relative humidity:< 85 % rel. humidity (not condensing)
Delivery Scope
1 x Glossmeter PCE-IGM 100
1 x Evaluation software (auf CD-ROM)
1 x Charging adapter
1 x USB cable
1 x Calibration plate
1 x Instruction manual
