Specifications:
DC
Measuring range: 600 mV; 6V; 60V; 600V; 1000V
Resolution: 0.1 mV; 1 mV; 10 mV; 100 mV; 1V
Accuracy: ± (0.5% + 4 digits); ± (0.5% + 4 digits); ± (0.5% + 4 digits); ± (0.5% + 4 digits); ± (1.0% + 4 digits)
Input impedance for the measuring range 600 mV: > 60 MΩ
Input impedance for all other measuring ranges: 10 MΩ
Overload protection: 1000V DC / 750V AC peak value
AC
Measuring range: 6V; 60V; 600V; 750V
Resolution: 1 mV; 10 mV; 100 mV; 1V
Accuracy: ± (0.8% + 10 digits); ± (0.8% + 10 digits); ± (0.8% + 10 digits); ± (1.0% + 6 digits)
Input impedance: 10 MΩ
Overload protection: 1000V DC / 750V AC peak value
Frequency range: 40 ... 400 Hz
Display duty cycle: 0.1 ... 99.9%
Alternating current
Measuring range: 60-mA; 600-mA; 6 A; 10 A
Resolution: 10 µA; 100 µA; 1-mA; 10-mA
Accuracy: ± (1.5% + 10 digits); ± (1.5% + 10 digits); ± (2.5% + 15 digits); ± (2.5% + 15 digits)
Maximum input current: 10 A (for no longer than 10 seconds)
Fuses: 0.6 A / 250V, 10 A / 250V
Frequency range: 40 ... 400 Hz
Display duty cycle: 0.1 ... 99.9%
Resistance
Measuring range: 600 Ω; 6 kΩ; 60 kΩ; 600 kΩ; 6 MΩ; 60 MΩ
Resolution: 0.1 Ω; 1 Ω; 10 Ω; 100 Ω; 1 kΩ; 10 kΩ
Accuracy: ± (0.8% + 5 digits); ± (0.8% + 4 digits); ± (0.8% + 4 digits); ± (0.8% + 4 digits); ± (0.8% + 4 digits); ± (1.2% + 10 digits)
Surge protection: 250V DC / 250V AC peak value
Measuring voltage open circuit: 600 mV
Capacity
Measuring range: 40 nF; 400 nF; 4 µF; 40 µF; 200 µF
Resolution: 10 pF; 100 pF; 1 nF; 10 nF; 100 nF
Accuracy: ± (5.0% + 30 digits); ± (3.5% + 8 digits); ± (3.5% + 8 digits); ± (3.5% + 8 digits); ± (5.0% + 10 digits)
Surge protection: 250V DC / 250V AC peak value
Frequency
Measuring range: 10 Hz; 100 Hz; 1000 Hz; 10 kHz; 100 kHz; 1 MHz; 20 MHz
Resolution: 0.01 Hz; 0.1 Hz; 1 Hz; 10 Hz; 100 Hz; 1 kHz; 10 kHz
Accuracy: ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits)
Input sensitivity: 1.5V
Surge protection: 250V DC / 250V AC peak value
Temperature measurement thermocouple type K
Measuring range: -20 ... 400°C; 400 ... 1000°C; 0 ... 750°C; 750 ... 1832° F
Resolution: 0.1°C; 1°C; 0.1°F; 1°F
Accuracy: ± (1.0% + 50 digits); ± (1.5% + 15 digits); ± (1.0% + 50 digits); ± (1.5% + 15 digits)
Diode test
Test current: 1-mA
Test voltage: 3V
Accuracy: -
Surge protection: 250V DC / 250V AC peak value
Continuity test:
Test current: -
Test voltage: 1.2V
Accuracy: -
Surge protection: 250V DC / 250V AC peak value
Beep at < 30 Ω
More specifications
Display: LCD display
Largest display: 5999 3 5/6
Bar graph: Scaled in 61 bars
Measuring rate: 3 measurements per second
Overrange: "OL" is displayed
Data Interface: Mini USB
Battery status indicator: With a total battery voltage of 2.4V
Operating conditions: 0 ... 40°C / 32 ... 104°F
Storage conditions: -10 ... 50°C / 14 ... 122°F, < 80% RH
Power supply: 2 x 1.5V AAA batteries
Dimensions: 185 x 91 x 49 mm / 7.3 x 3.6 x 1.9 in
Weight: Approx. 410 / < 1 lb (with batteries)
Delivery Scope

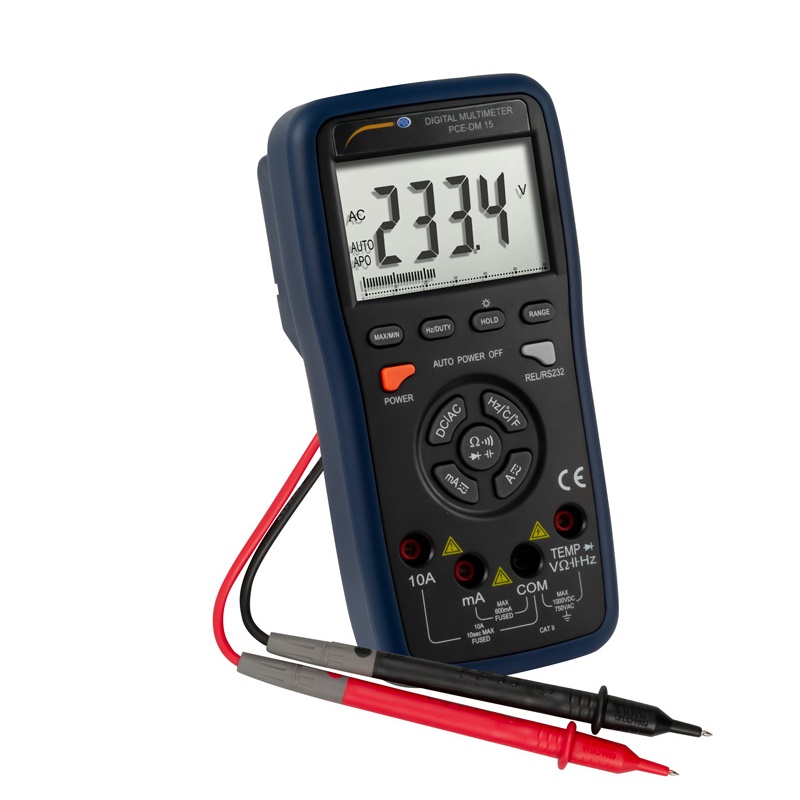

1 x Digital Multimeter PCE-DM 15
1 x Pair of test leads
1 x Type K thermocouple
2 x 1.5V AAA batteries
1 x Mini USB cable
1 x Software CD
1 x Instruction manual
