Specifications
Measuring geometry: 45/0 according to CIE No. 15, GB/T3987
Integrating sphere: Ø 58 mm
Sensor: Silicon photoelectric diode
Wavelength range: 400 ... 700 nm (10 nm pitch)
Measuring aperture: Ø 8 mm
Color spaces: CIE LAB, XYZ, Yxy, LCh, LUV, HunterLAB
Color index: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(h)
Chromacity data:
WI (ASTM E313 CIE/ISO, AATCC, Hunter)
YI (ASTM D1925, ASTM E313)
TI (ASTM E313, CIE/ISO)
Observation angle: 2° / 10°
Light source: D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light source device: combined LED
Life of light source: 5 years, > 1.6 million measurements
Data on display:
Spectral value/graph
colorimetric value
color difference (value/graph)
PASS/FAIL result
color offset
color simulation
Min. time between 2 measurements: 1.5 seconds
Repeatability: Standard deviation ~ 0.1 % (400...700 nm: ~0.2 %)
colorimetric value: standard deviation: ΔE*ab 0.04
Error between 2 measurements: ΔE*ab 0.02
Display: 3.5" TFT touch screen
Interface: USB
Storage: 1,000 alphanumeric reference values, 10,000 samples
Power supply: Rechargeable lithium-ion battery
Operating conditions: 0 ... +40 °C / 32 ... 104°F
0 ... 85 % RH
Storage conditions: -20 ... +50 °C / -4 ... 122 °F
Dimensions: 90 x 77 x 230 mm / 3.5 x 3.03 x 9.05 in
Weight: 600 g / 21.1 oz
Dilivery Contents

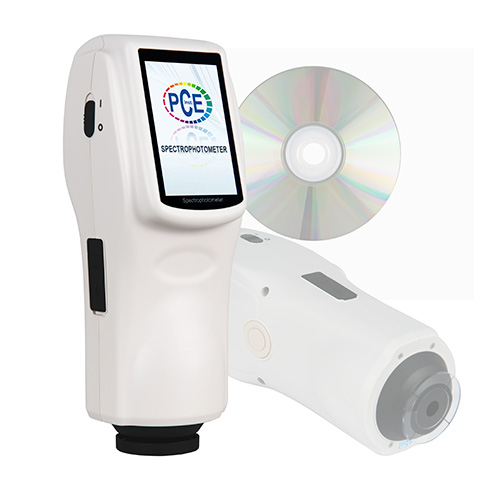

1 x Colorimeter PCE-CSM 8
1 x Aluminium carrying case
1 x Mains adapter
1 x Lithium-ion battery
1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable
1 x Wrist band
1 x PC software
1 x Instruction manual
