Specifications
Measuring geometry: 8° / d
Integrated sphere size:48 mm
Light source:LED lighting system, UV light
Spectrophotometric operation:Concave grid
Sensor:256 Pixel CMOS image sensor
Wavelength range:400 ... 700 nm
Wavelength interval:10 nm
Measured reflection range:0 ... 200%
Measuring aperture:Single panel: 8 mm (0.3") / 10 mm (0.4")
Specular component:SCI, SCE
Colour ranges:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Formulas for color inequality:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter)
Lighting type:D65, A, C, D50
Viewing angle:2° / 10°
Data display:Spectrogram values, colour values samples, colour difference values / graph, pass / fail result, colour balance
Measuring time:2.6 seconds
Repeatability:MAV/SCI: ΔE*≤0.06
Device error:MAV/SCI: ΔE*≤0.4
Measurement mode:Single measurement, average value measurement
Tracking procedure:Finding the measuring points by camera
Power supply;Built-in Li-ion battery
Dimensions:184 x 77 x 105 mm / 7.2 x 3.0 x 4.1" (L x W x H)
Weight:600 g / 1.3 lbs
Lamp lifespan:5 years / over 3 million measurements
Display:3.5 in TFT colour LCD, capacitive touch screen
Data interface:USB
Data storage:2000 standards, 20,000 samples
Menu languages:English, Chinese
Operating conditions:0 ... 40°C / 32 ... 104°F
0 ... 85% relative humidity (non-condensing)
Storage conditions:-20 ... 50°C / -4 ... 122°F
0 ... 85% relative humidity (non-condensing)
Dilivery Contents

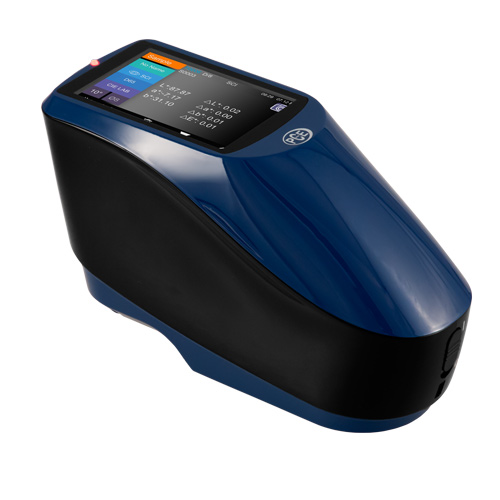

1 x Color Meter PCE-CSM 20
1 x Li-Ion battery (installed)
1 x Calibration standard (white and black)
1 x AC Charging adapter
1 x Dust cover
1 x USB cable
1 x Factory calibration certificate
1 x CD-Rom with software
1 x Cleaning cloth
1 x User manual
