Measuring geometry:8°/d
Measuring aperture:Diameter 8 mm
Integrating sphere:Diameter 58 mm
Sensor:Silicon photoelectric diode
Wavelength range:400 ... 700 nm
Reflection factor range:0 ... 200 %
Colour spaces:CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB
Colour index:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000, ΔE*00, ΔE(h)
Chromacity data:WI (ASTM E313, CIE/ISO, AATCC, Hunter)
YI (ASTM D1925, ASTM E313)
TI (ASTM E313, CIE/ISO)
Metamerism Index Mt
colour stain, colour fastness
Observation angle:2° / 10°
Measuring time:1.2 seconds
Light source:D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12(TL83/U30)
Light source device:combined LED
Repeatability:SPectral reflection: standard deviation ~ 0.1 % (400...700 nm: within ~0.2 %)
colorimetric value: standard deviation: within ΔE*ab 0.04
Error between each equipmentwithin ΔE*ab 0.02
Display functions:Spectral value/graph, colorimetric value, colour difference (value/graph), PASS/FAIL result, colour offset, colour simulation, colour index settings (ΔE*94, ΔE*cmc, ΔE*2000), error limit settings, time settings, language settings, restore factory settings
Display:3.5" TFT touch screen
Interface:USB / RS-232
Storage:1,000 reference values, 15,000 samples
Power supply:Rechargeable lithium-ion battery
3.7 V at 3,200 mAh
Life of light source:5 years, > 1.6 million measurements
Operating conditions:0 ... +40 °C
Storage conditions:-20 ... +50 °C
Dimensions:90 x 77 x 230 mm
Weight:600 g
Delivery Scope

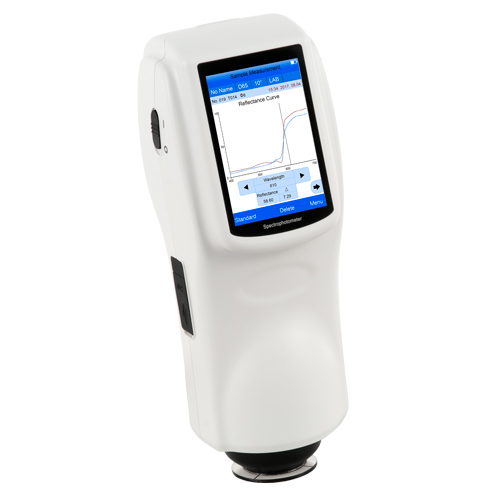

1 x Colorimeter PCE-CSM 10,
1 x Aluminium carrying case
1 x AC Mains adapter
1 x Lithium-ion battery
1 x Calibration plate (white)
1 x Calibration plate (black)
1 x Protective cover
1 x USB cable
1 x Wrist band
1 x PC software
1 x Instruction manual
