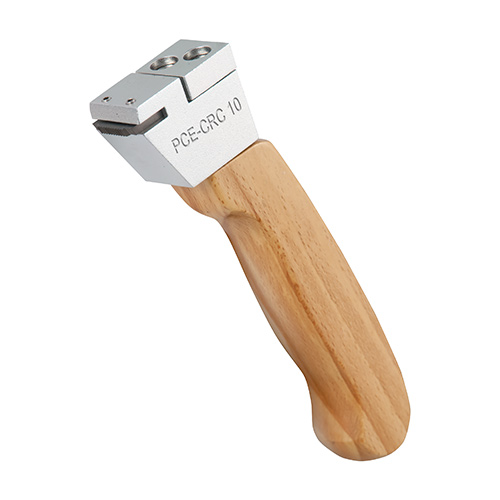

PCE-CRC 10 Adhesion Tester
Manufacturer: PCE-UK
Model: PCE-CRC 10
Warranty: 12 months
Specification
Measuring range:to 60 microns thickness
Number of teeth:6 or 11 (depending on the version)
Average distance:1 ... 3 mm (depending on the version)
Choosing the right cross-cut method
- Method A (X-cut) for testing to ASTM D 3359 with layer thickness> 125 µm
- Method B (crosshatch Cross) for testing to ISO 2409 with thickness 0 ... 250 µm and ASTM D 3359 with thickness <125 µm
Choosing the right cut distance (Method B)
To EN DIN ISO 2409
Layer thickness;Substratum;Average distance
0...60 µm;Hard;1 mm
0...60 µm;Soft;2 mm
Approx. 60...120 µm;Hard or soft;2 mm
Approx. 120...250 µm;Hard or soft;3 mm
To ASTM D 3359
Layer thicknessAverage distance
0 ... 50 µm;1 mm
50 ... 125 µm;2 mm
Dilivery Contents
1 x Adhesion Tester PCE-CRC 10 with selected blade
1 x Allen key for blade change
1 x Brush to remove loose particles
1 x Duct tape
1 x Transport case
1 x Instruction manual
