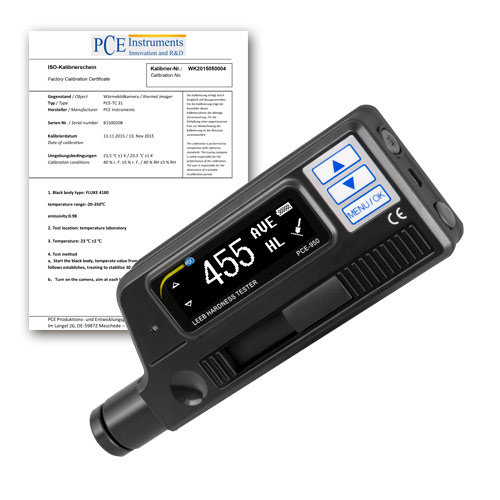

PCE 950-ICA ເຄື່ອງທົດສອບຄວາມແຂງຂອງໂລຫະທີ່ມີໃບຢັ້ງຢືນ ISO
Specification
Hardness measuring range by material
Cast steel
HRC: 19.8 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 80 ... 651
HV: 83 ... 976
HS: 32.2 ... 115
Hammered steel:HB: 143 ... 650
Cold-rolled steel:
HRC: 20.4 ... 67.1
HV: 80 ... 898
Stainless steelHRB: 45.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802
Cast iron:HB: 93 ... 334
Ductile iron
HB: 131 ... 387
Aluminum alloyHRB: 23.8 ... 84.6
HB: 19 ... 164
Brass:
HRB: 13.5 ... 95.3
HB: 40 ... 173
Bronze:HB: 60 ... 290
Forged copper alloy:HB: 45 ... 315
Accuracy:± 6 HL at 730 ... 790 HL; ± 10 HL at 490 ... 570 HL
Repeatability:6 HL at 730 ... 790 HL; 10 HL at 490 ... 570 HL
Total measuring range:170 ... 960 HL
Hardness scalesHL (HLD):
Leeb (Type D impact device)
HB: Brinell
HRC: Rockwell C
HRB: Rockwell B
HRA: Rockwell A
HV: Vickers
HS: Shore
Impact device:Type D
Measuring direction:360°
Display:128 x 32 OLED
Data storage:Internal memory saves up to 600 readings
Power supply:Built-in rechargeable Li-ion battery
Battery life:Approx. 50 hours
Data interface:Mini USB
Dimensions:Approx. 153 x 54 x 24 mm / 6.02 x 2.13 x 0.95 in
Weight:Approx. 250 g / < 1 lb
Delivery contents
1 x Hardness tester PCE-950
1 x Brush
1 x Miniature adapter
1 x USB cable
1 x Power supply
1 x Test block
1 x User manual
1 x Carrying case
1 x ISO calibration certificate
