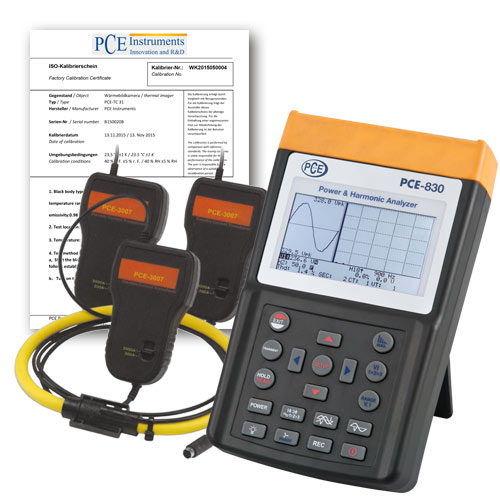

PCE 830-3-ICA ເຄື່ອງວິເຄາະພະລັງງານສາມເຟດ
Specification
Measurement values:Measurement ranges / resolution / accuracy
PCE-830 + PCE-3007
Watts AC (50 Hz or 60 Hz, PF 0.5 up to 1):
10.0 W to 999.9 W / 0.1 W / ±1% of measurement range
1.000 kW to 9.999 kW / 0.001 kW / ±1% of measurement range
10.00 kW to 99.99 kW / 0.01 kW / ±1% of measurement range
100.0 kW to 999.9 kW / 0.1 kW / ±1% of measurement range
1000 kW to 9999 kW / 1 kW / ±1% of measurement range
PCE-830 + PCE-3007
Current AC (50 Hz or 60 Hz, auto range select, TRMS):
0 to 300 A / 0.1 A / ±1.0% of measurement range
300.0 A to 999.9 A / 0.1 A / ±1.0% of measurement range
1000 A to 3000 A / 1 A / ±1.0% of measurement range
Voltage AC (50 Hz or 60 Hz, TRMS):
20.0 V to 500.0 V / 0.1 V / ±0.5% ±5 digits
(measure between phase and neutral)
20.0 V to 600.0 V / 0.1 V / ±0.5% ±5 digits
(measure between phase and neutral)
Harmonic distortion of AC voltage:
1º to 20º / 0.1% / ±1.0%
21º to 49º / 0.1% / 4% of reading ±2.0%
50º to 99º / 0.1% / 6% of reading ±2.0%
PCE-830 + PCE-3007
Harmonics of AC current in %:
1º to 10º / 0.1% / ±2%
21º to 49º / 0.1% / ±6%
50º to 99º / 0.1% / ±10%
PCE-830 + PCE-3007
Power Factor (PF):0.000 to 1.000 / 0.001 / ±0.04
PCE-830 + PCE-3007
Phase angle (Phi):0° to 180° / 0.1° / ±2°
PCE-830 + PCE-3007: 0.0 to 20.0% / 0.1% / ±2%
Total harmonic distortion:
20.0% to 100% / 0.1% / ±6% of reading ±1%
100% to 999.9% / 0.1% / ±10% of reading ±1%
Maximum measurement of AC voltage and current:
50 Hz / 19 µS / ±5% ±30 digits
60 Hz / 16 µS / ±5% ±30 digits
Peak value measurement of AC voltage and current:
1.00 to 99.99 / 0.01 / ±5% ±30 digits
Frequency range in automatic mode:45 Hz to 65 Hz / 0.1 Hz / 0.1 Hz
Memory:512 kB for a maximum 52,420 readings taken by 1 phase / 2 conductors
Port:USB
Software and cable:Included, for Windows 2000, XP, ME
Display:Backlit LCD with dot matrix
Power:8 AA batteries (Mignon)
Dimensions:
257 mm x 155 mm x 57 mm
10.1 in x 6.1 in x 2.2 in
Weight:1.16 kg / 2.56 lbs
Operating conditions:
Max. 85% relative humidity
-10º C to 50º C / +14º F to +122º F
Type of protection / standards:IEC 61010, 600 V/CAT III
Delivery contents
1 x PCE-830-3 3-phase-power analyzer
3 x Amp clamps - PCE-3007
4 x Alligator clips
4 x Safety test lines (3m long)
8 x Batteries
1 x Mains adaptor
1 x Carrying case
1 x USB cablem software
1 x User's manual
1 x ISO Calibration Certificate
