PCE 830-1-ICA ເຄື່ອງວິເຄາະພະລັງງານສາມເຟດ
Specification
Measurement values:Measurement ranges / resolution / accuracy
PCE-830 + PCE-6801
Watts AC (50 or 60Hz, PF 0.5 up to 1):
5.0 to 999.9W / 0.1W / ±1% ±0.8W
1.000 to 9.999kW / 0.001kW / ±1% ±8W
10.00 to 99.99kW / 0.01kW / ±1% ±80W
100.0 to 999.9kW / 0.1kW / ±1% ±0.8kW
1000 to 9999kW / 1kW / ±1% ±8kW
PCE-830 + PCE-6801
Current AC (50 or 60Hz, auto range select, TRMS):
0.04A to 1A / 0.001A / ±0.5% ±0.05A
0.4A to 10.0A / 0.01A / ±0.5% ±0.05A
4A to 100.0A / 0.1A / ±1.0% ±0.5A
Voltage AC (50 or 60Hz, TRMS):
20.0 to 500.0V / 0.1V / ±0.5% ±5 digits
(measure between phase and neutral)
20.0 to 600.0V / 0.1V / ±0.5% ±5 digits
(measure between phase and neutral)
Harmonic distortion of AC voltage:
1 to 20º / 0.1% / ±1.0%
21 to 49º / 0.1% / 4% of reading ±2.0%
50 to 99º / 0.1% / 6% of reading ±2.0%
PCE-830 + PCE-6801
Harmonics of AC current in %:
1 to 20º / 0.1% / ±0.2% of reading ±1.0%
11 to 20º / 0.1% / ±2% of reading ±1.0%
21 to 50º (A)/ 0.1% / ±5% of reading ±1.0%
21 to 50º (mA)/ 0.1% / ±10% of reading ±1.0%
51 to 99º / 0.1% / ±35% of reading ±1.0%
PCE-830 + PCE6801
Power Factor (PF):0.00 to 1.00 / 0.01 / ±0.04
PCE-830 + PCE6801
Phase angle (Phi):-180° to 180° / 0.1° / ±1°
PCE-830 + PCE-6801
Total harmonic distortion:
0.0 to 20.0% / 0.1% / ±1%
20.0 to 100% / 0.1% / ±3% of reading ±5%
100 to 999.9% / 0.1% / ±10% of reading ±10%
Maximum measurement of AC voltage and current:50Hz / 19µS / ±5% ±30 digits
60Hz / 16µS / ±5% ±30 digits
Peak value measurement of AC voltage and current:1.00 to 99.99 / 0.01 / ±5% ±30 digits
Frequency range in automatic mode:45 to 65Hz / 0.1Hz / 0.1Hz
Memory512kB for a maximum 52,420 readings taken by 1 phase / 2 conductors
Port:USB
Software and cable:included, for Windows 2000, XP, ME
Display:backlit LCD with dot matrix
Power:8 AA batteries(Mignon)
Dimensions:257 x 155 x 57mm / 10.1 x 6.1 x 2.2 in
Weight:1160g / 40.9 oz
Operating conditions:max. 85% relative humidity / -10 ... 50ºC / 14 ... 122 °F
Type of protection / standards:IEC 61010, 600 V/CAT III

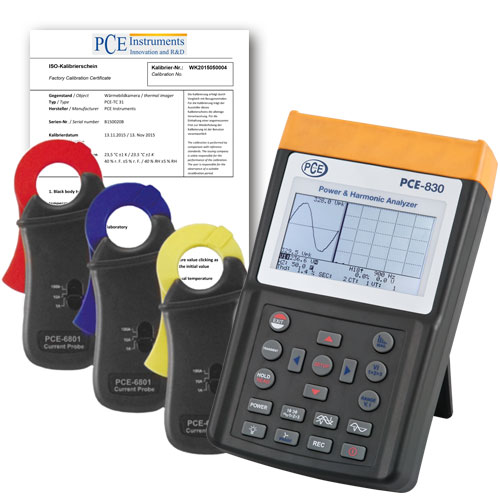

Delivery contents
1 x PCE-830 power analyser
3 x Amp clamps - PCE-6801
4 x Alligator clips
4 x Safety test lines (3m long),
8 x Batteries
1 x Mains adaptor
1 x Carrying case
1 x USB cablem software
1 x User's manual
1 x ISO calibration certificate
