Specification
Measuring range
Rockwell: A B C61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC
Brinell:85 … 650 HB
Vickers:50 … 999 HV
Tensile strength:255 … 2180 N/mm²
Accuracy
Rockwell:± 1.5 HR
Brinell:± 3% HB
Vickers:± 3% HV
Measurement method:Ultrasonic contact impedance (UCI) per ASTM A1038
Direction of measurement:360°
Measurement time:2 seconds
Hardness units:HRA, HRB, HRC, HB, HV, MPa
Display:LCD with backlight
Minimum material thickness: 2 mm
Data memory:Up to 2000 measurement groups; Up to 20 calibration sets
Measurement probe:20 N (standard)
Probe cable length:1.5 m / .06 in
Functions:Single value, min / max, average value
Power supply:4.2V rechargeable battery, 4800-mAh
Battery life:Approx. 10 hrs of operation at full charge (without backlight)
Dimensions:162 x 81 x 31 mm / 6.38 x 3.19 x 1.22 in
Operating conditions:-10 ... 40°C / 14 ... 104°F, ≤ 85% RH
Storage conditions:-20 ... 60°C / -4 ... 140°F, ≤ 85% RH
Weight:Approx. 755 g / 1.67 lb (including probe)
Delivery contents

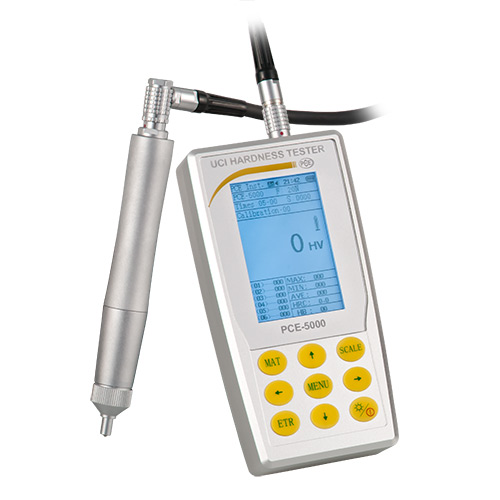

1 x PCE-5000 UCI hardness tester with 1 x 4.2V battery
1 x 20 N probe (standard)
1 x Protective cap for probe (silicon)
1 x Probe cable
1 x USB cable
1 x USB charger
1 x RS-232 interface cable
1 x Certificate of quality from the manufacturer
1 x Screwdriver
1 x Vibration-resistant carrying case
1 x User manual
