Specification
AC voltage
Measuring range: 50 V ... 600.0 V True RMS value
Resolution: 0.1 V
Accuracy: ± 1.5% of measured value ± 10 digits
AC current
Measuring range: 3 A ... 999.9 A True RMS value
Resolution: 0.1 A
Accuracy (incl. current clamp): ± 1.5% of measured value ± 15 digits
Active power
Measuring range: 150 W ... 999.9 kW
Resolution: 0.1 kW
Accuracy: ± 1.5% of measured value ± 20 digits
Apparent power
Measuring range: 150 VA ... 999.9 kVA
Resolution: 0.1 kVA
Accuracy: ± 1.5% of measured value ± 20 digits
Reactive power
Measuring range: 150 Var ... 999.9 kVar
Resolution: 0.1 kVar
Accuracy: ± 1.5% of measured value ± 20 digits
Power factor (cos Φ)
Measuring range: 0 ... +1
Resolution: 0.001
Accuracy: ± 0.06
Phase angle (Φ)
Measuring range: -90° ... + 90°
Resolution: 0.1°
Accuracy: ± 3°
Frequency (U < 50 V)
Measuring range: 40 Hz ... 100 Hz
Resolution: 0.1 Hz
Accuracy: ± 0.1% of measured value +2 digits
Rotary field (UL > 50 V)
Input voltage range: 3P > 10 V
Measurement sources: U1, U2 and U3
Active energy
Measuring range / resolution: 0 ... 9999 MWh
Accuracy: ± 1.5% of measured value +20 digits
Apparent energy
Measuring range / resolution: 0 ... 9999 MVAh
Accuracy: ± 1.5% of measured value +20 digits
Reactive energy
Measuring range / resolution: 0 ... 9999 MVArh
Accuracy: ± 1.5% of measured value +20 digits
Harmonics
Order: 1 ... 63
Accuracy: ± 3% THD
Waveforms: Display via PC software
General specifications
Sampling rate: 1 / second
Max. current clamp opening: 44 mm / 1.73 in
Max. data storage:
Manual: 50 measurements
Data logger: 99 sets of 350,000 measurements
Data interface
Software:
RS-232 port to USB cable
CD-ROM for PC, Windows-compatible
Display: 4-digit LCD
Power supply: 8 x 1.5 V AA batteries or 12 V, 300 mA
Device dimensions
Device weight (incl. batteries): Approx. 235 mm x 117 mm x 54 mm / 9.25 in x 4.61 in x 2.13 in; Approx. 730 g / 1.61 lbs
Delivery contents

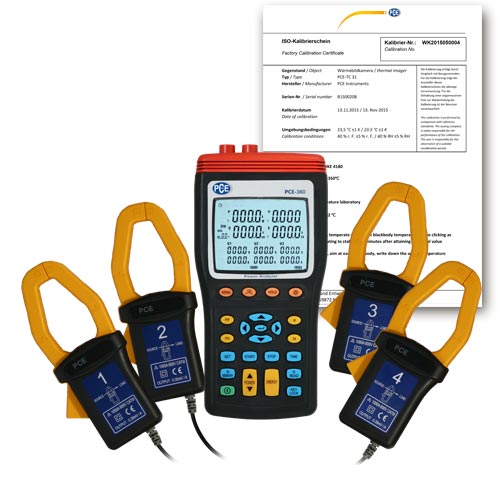

1 x PCE-360 Power Analyzer
4 x Current clamps
4 x Measuring leads
4 x Alligator clips
8 x 1.5 V AA batteries
1 x Power adapter
1 x USB cable
1 x PC software CD-ROM
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate
