Specification
Measurement range:
230 ... 940 HV
20 ... 70 HRC
90 ... 650 HB
370 ... 1740 MPa
Accuracy:+/- 3% HV; +/- 1.5 HRC; +/- 3% HB
Probes:50 N UCI probe (10 N UCI probe optional)
Hardness scales:HRC, HB, HV, HRB, HL, MPA
Materials:UCI: steel (ferromagnetic)
Reference block:136° Vickers diamond
Measurement direction:360°
Minimum material thickness:1 mm / .04 in (with UCI probe only)
Display:graphical colour LCD with backlight
Functions:Single measurement, MIN / MAX / average value, number of measurements, mean value, standard deviation, variation coefficient, bar chart, Smart Mode (filters outliers)
Memory:SD card
Interface:USB
Operating conditions:-20 ... 40°C / -4 ... 104°F ; 30 ... 80 % RH
Power supply:6V (3 x AA batteries)
Battery life:Approx. 10 hours
Dimensions:160 x 75 x 30 mm / 6.3 x 3 x 1.2 in
Protection class:IP 54
Weight:300 g / < 1 lb (without probe)
Delivery contents

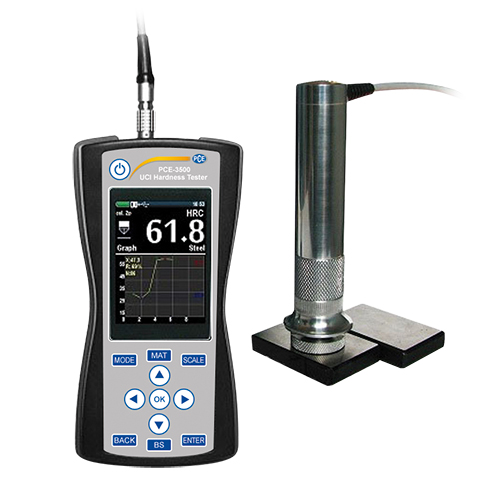

1 x UCI hardness tester PCE-3500
1 x 50 N UCI probe
1 x 2 GB SD card
1 x USB cable
1 x PC software
1 x instruction manual
