Specification
Measurement method: According to Leeb
Impactor: DL
Measuring range:
HLD: 170 ... 960
HRC: 17.9 ... 69.5
HB: 19 ... 683
HV: 80 ... 1042
HS: 30.6 ... 102.6
HRA: 59.1 ... 88
HRB: 3.5 ... 101.7
Measurement accuracy: HLD: ± 0.5%
Maximum hardness: 1042 HV
Striker: Type D
Display: 128 x 64 mm / 5 x 2.5 in OLED
Repeatability: HLD: ± 0.8%
Hardness max.: 1042 HV
Measurement units: HLD, HRC, HB, HV, HS, HRA, HRB
Display: 15 mm / 0.59 in
Material: Steel; Cast steel; Alloy tool steel; Stainless steel; Cast iron; Nodular cast iron parts; Cast aluminum alloy; Brass; Bronze; Tin bronze
Measuring ranges on different material surfaces
Material
Steel:
HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5
Tool steel:
HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5
Stainless steel:
HRB: 46.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802
Cast iron:
HB: 93 ... 334
Brass:
HRB: 13.5 ... 95.3
HB: 40 ... 173
Bronze: HB: 60 ... 209
Copper HB: 45 ... 315
Battery life: ca. 10 h
Power supply: Polymer Li-ion battery, 3.7V
Interface: USB 2.0
Dimensions: 205 x 32 x 25 mm / 8 x 1.3 x 1 in
Weight: 650 g / 1.4 lbs
Display: 128 x 64 mm / 5 x 2.5 in OLED
Opearting conditions: -10 ... 50°C / 14 ... 122°F , <90% r.H.
Storage conditions: -30 ... 60°C / -22 ... 140°F, <90% r.H.
Delivery contents

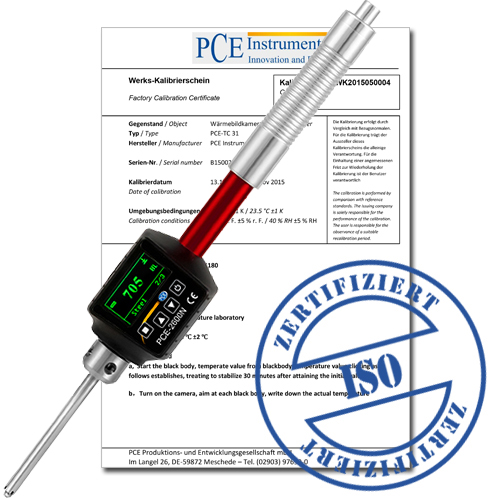

1 x Hardness Tester PCE-2600N-ICA
1 x Impactor
1 x Calibration block
1 x Cleaning brush
1 x ISO calibration certificate
1 x Carrying case
1 x Operation manual
