Specification
Ranges of measurement with the corresponding symbol of measurement displayed for the PCE-007 Flow meter:
- m / s: 0.0 ... 45.0
- Feet/min: 0.0 ... 8800
- Knots: 0.0 ... 88.0
- Km/h: 0.0 ... 140.0
- Mph: 0.0 ... 100.0
- °C / °F: 0.0 ... 45.0 / 32 ... 113°F
- m³/min: 0.0 ... 999,900
Resolution:
- Wind speed: 0.01 m/s (the same for all units)
- Air temperature: 0.2°C / 32.4°F
- Data logger: 0.001 to 100 (according to the measurement range)
Accuracy:
- Wind speed: ±3% ±0.1 (the same for all units)
- Air temperature: ±1°C / 33.8°F
- Data logger: Calculated from the wind speed and the surface
Interface: Yes, RS-232 for data transfer
Memory: Yes, 2000 readings either as wind speed or temperature.
Don't forget: if the memory is full, it will save all currently stored data, but if the batteries have no power, then all the data will be lost.
Software: Yes, for the configuration of the device and to transfer data to a computer (with Windows 95, 98, 2000 or XP Professional)
Measurement values can be exported to other programmes such as Excel.
Data transmission rate (via software): 1 s
Side wheel
- Casing: Sapphire (set upon bearings of precious stones)
- Dimensions: 66 x 132 x 29.2 mm / 2.6 x 5.2 x 1.1 in
Display: 2 double LCDs with 4 digits
Operating conditions:
Data logger: 0 ... 50°C / 32 ... 122°F, <80% r.h.
Side wheel: 0 ... 60°C / 32 ... 140°F, <80% r.h.
Power: 1 x 9V battery (approx. 50 hours of use)
Dimensions of the device: 88 x 168 x 26.2mm / 3.5 x 6.6 x 1 in
Enclosure: ABS plastic
Weight: 350g / < lb
Delivery contents

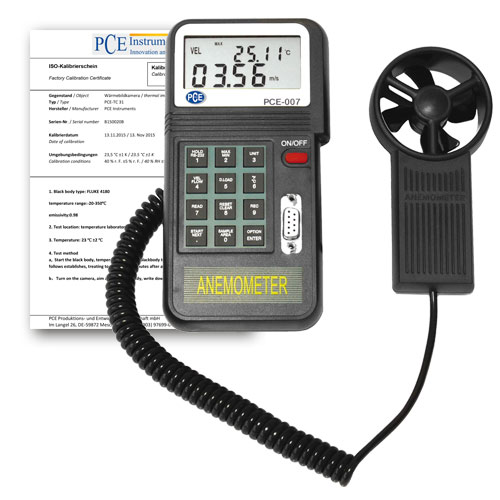

1 x PCE-007 HVAC Data- Logger meter with impeller and 1.5 m / 4.9 ft long cable
1 x Interface
1 x Software
1 x Battery
1 x Bag
1 x User's manual
1 x ISO calibration certificate
