PCE XXM 30-ICA ເຄື່ອງວັດແທກສີ (CIE-LAB, CIE-LCh, HunterLab; CIE-Luv, XYZ, Yxy RGB; ISO Calibration Cert.)
Measurement geometry and angle: D/8-SCI
Calibration: black and white
Color ranges:
CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy RGB
Formulas for color inequality: ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00
WI: ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby
YI: ASTM D1925, ASTM E313-00,ASTM E313-73
Blackness: My, dM
Color shade: ASTM E313-00
Color density: CMYK (A, T, E, M), Metamerism Index Milm, Munsell, opacity, dye strength, color strength
Type of light source: LED (full and visible wavelength range)
Light source:
A, B, C D50, D55, D65, D75, F1 …
F12, CWF, U30, DLF, NBF, TL83, TL 84, U35
Measuring angle: 2°, 10°
Repeatability: ΔE* from ≤0.1
Difference between two different color meters (IIA): ΔE* 00 <0.4
Accuracy refers to the average measurement of 12 BCRA Series II references
Measurement opening: Ø8 mm / 0.31"
Wavelength interval: 10 mm / 0.39"
Wavelength: 400 … 700 nm
Memory: 10 measured values, redundant
Measurement time: <1 s
Display: LC display, 135 x 240 p, 1.14"
Interfaces: Bluetooth, USB-C
Power supply: 5 V DC, 1 A
Battery life: ca. 10,000 measurements
Ambient conditions: 5 … 45 °C / 41 … 113 °F, <90 RH, non-condensing
Dimensions: Ø35 x 130 mm / Ø1.37 x 5.11"
Weight: 87 g / 3 oz
Delivery Scope:

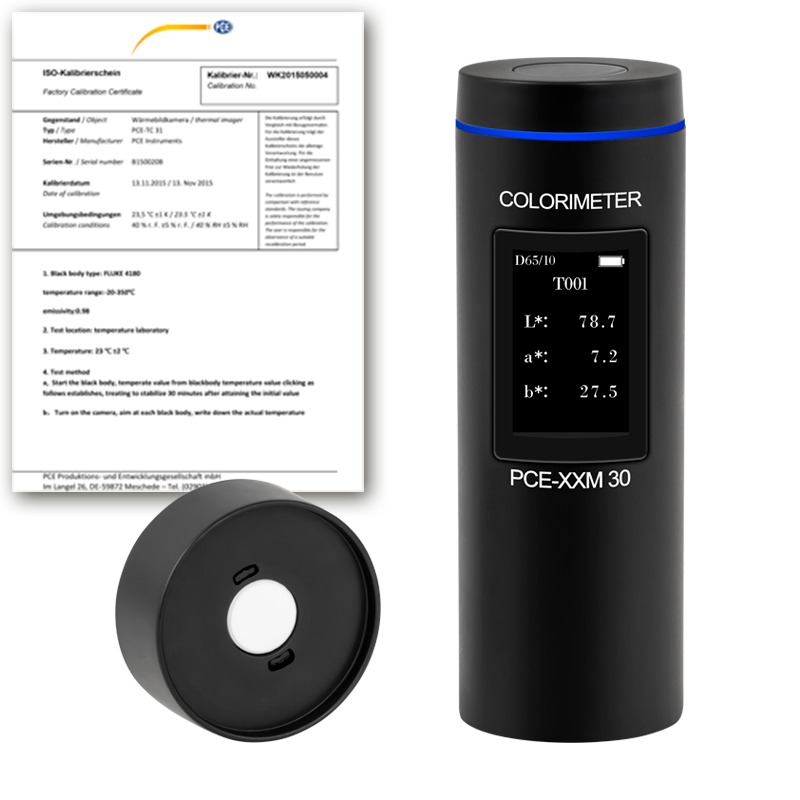

1 x Colorimeter PCE-XXM 30-ICA
1 x White reference
1 x USB-C cable
1 x Instruction manual
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
