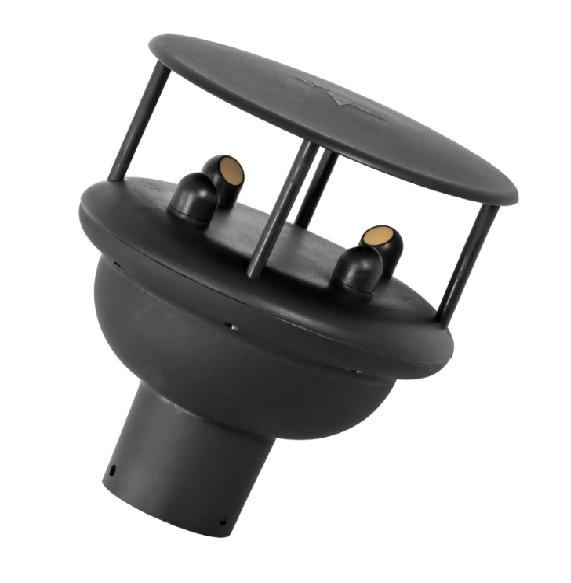

PCE WS US2 ເຄື່ອງວັດແທກກະແສລົມ (0 ~ 15 km/h; 15 ~ 120 km/h; 120 ~ 160 km/h)
Speed
Measurement range up to: 0 ... 15 km/h
Resolution: 1 km/h
Accuracy: 0.5 km/h
Speed
Measurement range up to: 15 ... 120 km/h
Resolution: 1 km/h
Accuracy: 3 % of Rd
Speed
Measurement range up to: 120 ... 160 km/h
Resolution: 1 km/h
Accuracy: 5 % of Rd
Wind direction
Measurement range up to: 0 ... 359 °
Resolution: 1 °
Accuracy: 3 °
General technical data
Measuring functions: Flow velocity
Connections: M12 4-pole
Display type: without display
Interface: RS485
Sensor: Ultrasound
Housing: PA (polyamide)
Protection class (device): IP65
Power supply: 9 ... 30 V DC
Weight: 400 g
Operating conditions: -30 ... 70 °C , 0 ... 100 % RH
Storage conditions: -35 ... 80 °C , 0 ... 100 % RH
Dimensions ( H x D ): 162 x 143 mm
Delivery Scope
1 x Airflow Meter PCE-WS US2
1 x 5m cable with 4-pin M12 plug
1 x User manual
