Water activity
Measurement range up to: 0 ... 1 aw
Resolution : 0.0001 aw
Accuracy: ±0.01 aw (10 ... 30 °C)
Temperature
Measurement range up to: -10 ... +50 °C
Resolution: 0.01 °C
Accuracy: ±0.1°C
General technical data
Number of measuring channels: 4
Display type: LC touch display
Display size: 7 Inch
Storage medium: Internal memory
Storage capacity: 65535 Data records
Interface: USB, RS232
Sensor: Capacitive
Calibration: 1 - 6 points
Menu language: English, French, Spanish, Chinese
Protection class (device): IP20
Power supply: 110 ... 240 V AC | 50/60 Hz
Connector type: Schuko plug
Weight: 2940 g
Operating conditions: -10 ... 40 °C , 20 ... 60 % r.F
Storage conditions: -10 ... 40 °C , 20 ... 60 % r.F
Dimensions ( L x W x H ): 265 x 220 x 135 mm
Delivery Scope
1 x Moisture Meter PCE-WAM 60
1 x aw sensor
1 x sample holder
20 x sample cups
1 x USB cable B-type to A-type
1 x mains adaptor 12 V, 5 A
1 x PC software (Windows 10 or higher)
1 x user manual
The software can be found in the download area.
Compatible with Windows 10 and higher.

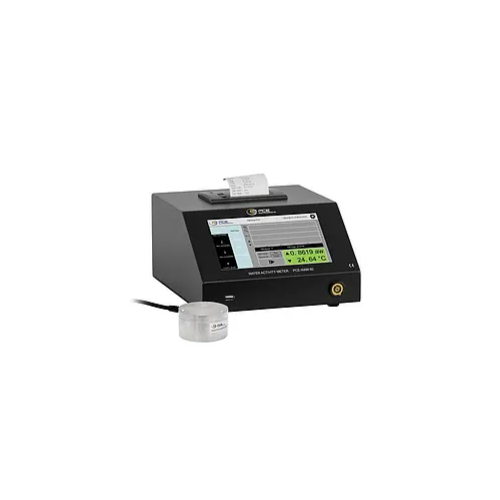

Moisture Meter / 4-channel measurement possible / temperature measurement / internal memory / USB and RS232 interface / real-time control via software / integrated printer / 7" LC touch display
The Moisture Meter enables the simultaneous or separate measurement of water activity on 4 channels. It measures water activity within a range from 0 ... 1 aw and temperature from -10 ... +50 °C. Our meter is equipped with a 7" touchscreen that displays the data in real time and saves it for later analysis. Results, graphs and measurement data can be called up at any time. Thanks to the professional sensor, the device provides very accurate results within 3 to 5 minutes.
The Moisture Meter has three different measurement modes: normal measurement mode, a quick measurement mode and the continuous display mode as well as a real-time display of the measurement curve. It can be calibrated from 1 to 6 points and the menu is available in several languages, including Chinese, English, French and Spanish. The device's memory can save the data from the 4 channels, with each channel holding up to 65,535 data records. The data can be printed out at any time using the integrated printer.
The device's software enables real-time control and display of water activity and temperature. The data can also be output as a PDF, in Excel format or as a screenshot.
This Moisture Meter is suitable for a wide range of applications, including quality control in the food and cosmetics industries, research institutes, biological and pharmaceutical research as well as other scientific laboratories and paper manufacturing.
The Moisture Meter is supplied with an aw sensor and sample holder. Accessories such as additional aw sensors, sample holders as well as replacement paper and sample cups can also be purchased from us.
Highlights
- measurement range 0 ... 1 aw
- up to 4 aw sensors simultaneously
- data memory: 65535 data records per channel
- USB and RS232 interface
- real-time display of the measurement curve
- standard, quick and continuous display modes
- real-time controln via software
- integrated printer
- 7" LC touch display
- password-protected user profiles
Manual
