PCE VT 3800S ເຄື່ອງວັດແທກຄວາມສັ່ນສະເທືອນ (0~399,9 m/s²; 0~399,9 mm/s; 0~3,9 mm)
- Measuring range: Acceleration
0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
Resolution: 0.1 m/s² / 3.94 in/s²
Accuracy @ 160 Hz: ±2 %
Frequency range: 10 Hz ... 10 kHz; 1 kHz ... 10 kHz
- Measuring range: Velocity
0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
Resolution: 0.1 mm/s / 0.0039 in/s
Accuracy @ 160 Hz: ±2 %
Frequency range: 10 Hz ... 1 kHz
- Measuring range: Displacement
0.000 ... 3.9 mm / 0.000 - 0.154 in
Resolution: 1 µm / 39.4 µin
Accuracy @ 160 Hz: ±2 %
Frequency range: 10 Hz ... 200 Hz
Measurement parameters: RMS, Peak, Peak-Peak; Crest factor
Manual memory: 99 folders with 50 measured values each
Data logger:
Various start/stop triggers
Measurement interval between 1 s … 12 h
50 memory locations with 43200 measured values each
Units: can be switched to metric / imperial
Display: 2.48" LC display
Menu languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
Power supply:
internal: LiPo battery (3.7 V, 2500 mAh)
external: USB 5 VDC, 500 mA
Operating time: ca. 15 … 20 h (depending on display brightness)
Operating and storage conditions:
temperature: -20 ... +65 °C / -4 ... 149 °F
humidity: 10% RH ... 95% RH, non-condensing
Dimensions: 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"
Weight: 239 g / 8.4 oz
-Technical Data Vibration Sensor:
Resonance frequency: 24 kHz
Transverse sensitivity: ≤ 5%
Destruction limit: 5000 g (peak)
Operating and storage temperature: -55 °C … +150 °C / -67 °F ... 302 °F
Housing material: stainless steel
Mounting thread: ¼ - 28“
Dimensions: Ø 29 x 81 mm / 1.14 x 3.18"
Weight (without cable): 119 g / 4.2 oz
Delivery Scope:

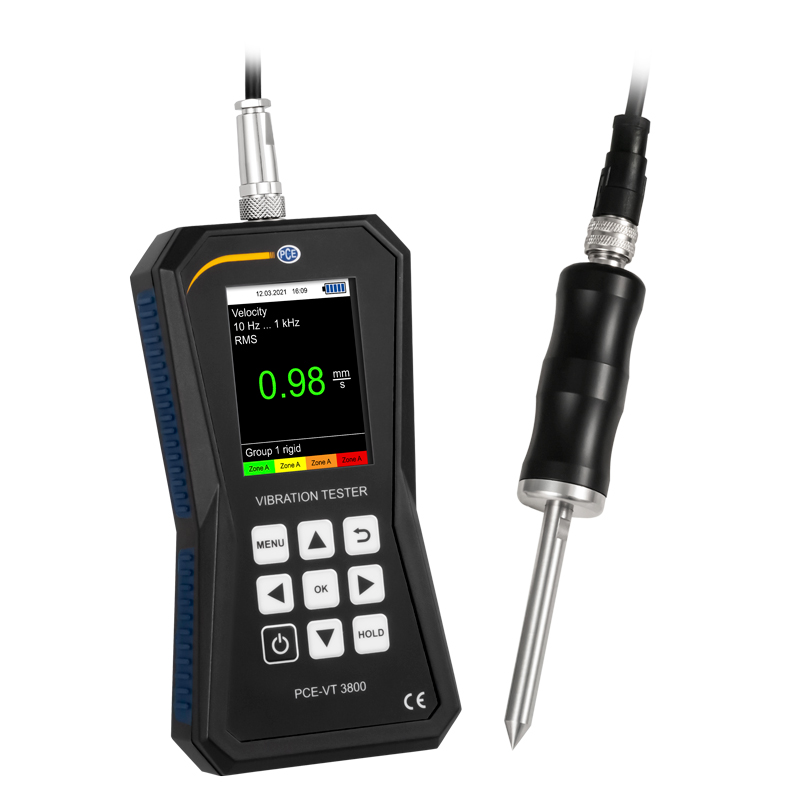

1 x Vibration Meter PCE-VT 3800S
1 x Sensor
1 x Spiral cable
1 x Measuring tip
1 x Micro USB cable
1 x USB stick with software and instructions
1 x Quick start guide
1 x Service bag
