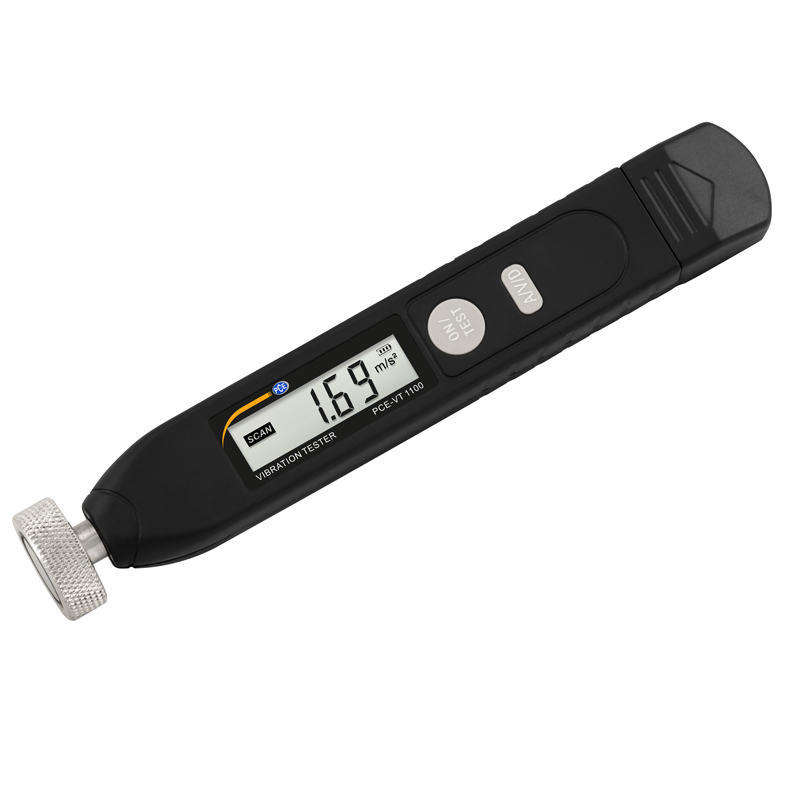

PCE VT 1100M ເຄື່ອງວັດແທກຄວາມສັ່ນສະເທືອນ (0,01~199,9 m/s²; 0,01~199,9 mm/s; 0,001~1,999 mm)
Parameter Measuring Range Frequency Range
Acceleration: 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz
Vibration speed0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz
Displacement: 0.001 ... 1.999 mm p-p 10 ... 500 Hz
Measurement accuracy:
Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
General specifications;
Display: LCD, Response time approx. 1 second
Power supply: 2 x 6V CR2032 button cell
Battery life: About 5 hours (in continuous operation)
Environmental conditions: 0 ... 40°C / 32 ... 104°F, 0 ... 84% r.H.
Dimensions: 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7 in
Weight: ca. 40 g / 1.4 oz (incl. batteries)
Delivery Scope:
1 x Vibration Meter PCE-VT 1100M
1 x Magnetic sensor
1 x PCE-VT-NF-10 standard probe (length 10 mm)
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
