PCE UFM 65CU ເຄື່ອງວັດແທກການໄຫຼ Ultrasonic (0.35 ... 60 m³/h)

Specification

Speed

Measurement range up to:  0.03 ... 5 m/s

Resolution:  0.01 m/s

Accuracy:  ±2 % of Rd (0.3 ... 5 m/s)

Speed

Measurement range up to:  0.1 ... 16 ft/s

Resolution:  0.1 ft/s

Accuracy:  ±2 % of Rd (1.0 ... 16 ft/s)

Volume flow

Measurement range up to:  0.35 ... 60 m³/h

Resolution:  0.01 m³/h

Accuracy:  ±2 % of Rd

General technical data

Display type:  LC colour display

Display size:  1.44 Inch

Display resolution:  128 x 128

Interface:  Ethernet, PoE

Materials:  Copper

Measured medium:  Water

Repeatability:  0.2 %

Communication:  HTTP, MQTT

Menu language:  English, Chinese, English (GB)

Protection class (device):  IP54

Power supply:  PoE

Connector type:  RJ45

Weight:  1256 g

Operating conditions:  -10 ... 50 °C , 0 ... 99 % RH

Storage conditions:  -10 ... 50 °C , 0 ... 99 % RH

Dimensions ( L x W x D ):  65 x 111 x 43 mm

Delivery Scope

1 x Ultrasonic Flow Meter PCE-UFM 65CU

1 x sensor with Ethernet cable 9 m

1 x PoE network cable 2 m

1 x ultrasonic contact gel

1 x silicone seal 1 m

4 x coupling pad

1 x Allen key

1 x user manual

Note: The Android app "dial Meter Tube" can only be downloaded from our shop, under Downloads!

Description

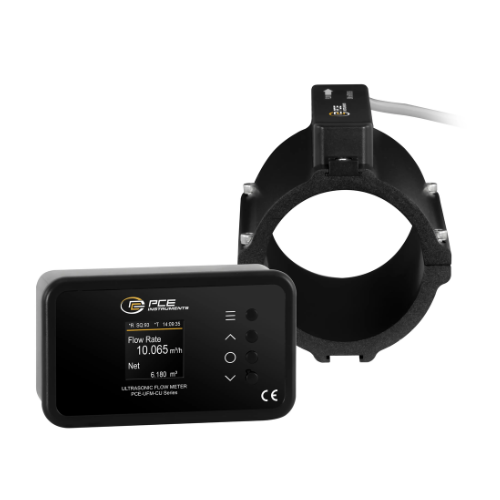

Ultrasonic Flow Meter / PoE and sensor with 9 m Ethernet cable / measurement of flow rate and volume flow via ultrasound / simple operation via 4 keys

Our Ultrasonic Flow Meter enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on copper pipes with a diameter between 59 and 67 mm. The Ultrasonic Flow Meter of the PCE-UFM-CU series uses the ultrasonic transit time method to determine velocity and flow volume. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel.

The Ultrasonic Flow Meter is equipped with a 360° rotatable display that can be pointed in four directions (0°, 90°, 180°, 270°). The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters. The flow unit can be selected between m³, l and gal.

The Ultrasonic Flow Meter uses Power over Ethernet (PoE) for power supply and Ethernet communication to save data to the cloud. This allows users to access, manage and analyse their measurement data at any time and from any location via mobile devices or computers without interrupting production processes. In water and wastewater management, drinking water treatment or in industry, flow meters are used in processes where water is used as a coolant, cleaning agent or component of production processes. They help to optimise water consumption and control the process flow.

Highlights

- measurement range 0.03 ... 5 m/s

- display of flow velocity, volume flow

- pipe size: DN65 (59 ... 67 mm)

- pipe material: copper

- interface: Ethernet

- incl. reusable coupling pads
