| Measurement range | 147,1 Ncm / 13,02 lbfin / 15 kgfcm |
| Resolution - High resolution - Low resolution |
0,1 Ncm / 0,01 lbfin / 0,01 kgfcm 1 Ncm / 0,1 lbfin / 0,1 kgfcm |
|
Accuracy |
±1,5 % + 5 digits |
|
Peak-Hold function |
yes |
| Additional functions | Data-Hold / máx. y mín. / Peack-Hold |
|
Units |
Ncm, kgfcm, lbfin |
| Overload protection | máx. 150 % |
| Output | RS-232 |
| Software | option |
|
Display |
LCD |
|
Operating temperature |
0 ... +50 ºC, below 80 % H.r |
| Power supply | 9 V battery |
| Weight - Main unit - External sensor |
approx. 225 g approx. 665 g |
| Dimensions - Main unit - External sensor |
|
Delivery
1 x Digital Torque Meter PCE-TM 80,
1 x external sensor,
1 x chuck ley,
1 x plastic carrying case,
user’s manual
|
Digital Torque Meter PCE-TM 80 |
|
|

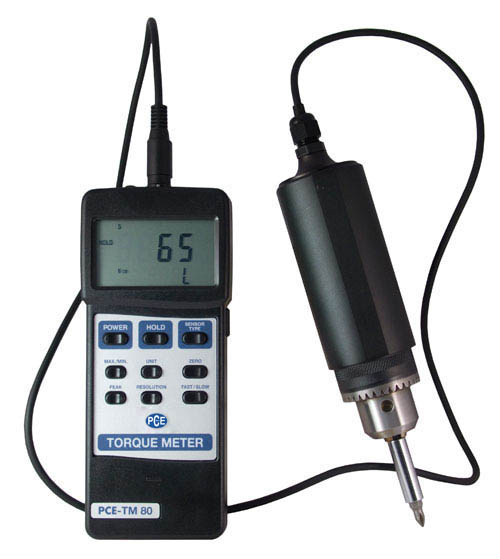

The Digital Torque Meter PCE-TM 80 with external sensor to measure the torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to perform easily torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the possibility (according to the application) to enlarge 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. By means of the optional software real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very solid to ensure both long duration and reliability. |
|
|
|
|
| - Range 0 ... 147 Ncm - Selection of 3 units (Ncm, kgfcm, lbfin) - Digital output RS-232 - External torque sensor - Optional software - Selection of the resolution |
- Automatic shut-off View / print user’s manual of the Digital Torque Meter PCE-TM 80 |
 The Digital Torque Meter PCE-TM 80 measuring the torque moment in a grinder |
 Current values can be directly read in the display of the Digital Torque Meter PCE-TM 80 |
Technical peScifications |
|
| Measurement range | 147,1 Ncm / 13,02 lbfin / 15 kgfcm |
| Resolution - High resolution - Low resolution |
0,1 Ncm / 0,01 lbfin / 0,01 kgfcm 1 Ncm / 0,1 lbfin / 0,1 kgfcm |
|
Accuracy |
±1,5 % + 5 digits |
|
Peak-Hold function |
yes |
| Additional functions | Data-Hold / máx. y mín. / Peack-Hold |
|
Units |
Ncm, kgfcm, lbfin |
| Overload protection | máx. 150 % |
| Output | RS-232 |
| Software | option |
|
Display |
LCD |
|
Operating temperature |
0 ... +50 ºC, below 80 % H.r |
| Power supply | 9 V battery |
| Weight - Main unit - External sensor |
approx. 225 g approx. 665 g |
| Dimensions - Main unit - External sensor |
|
|
|
|
|
Delivery contents |
|
|
1 x Digital Torque Meter PCE-TM 80, |
|
