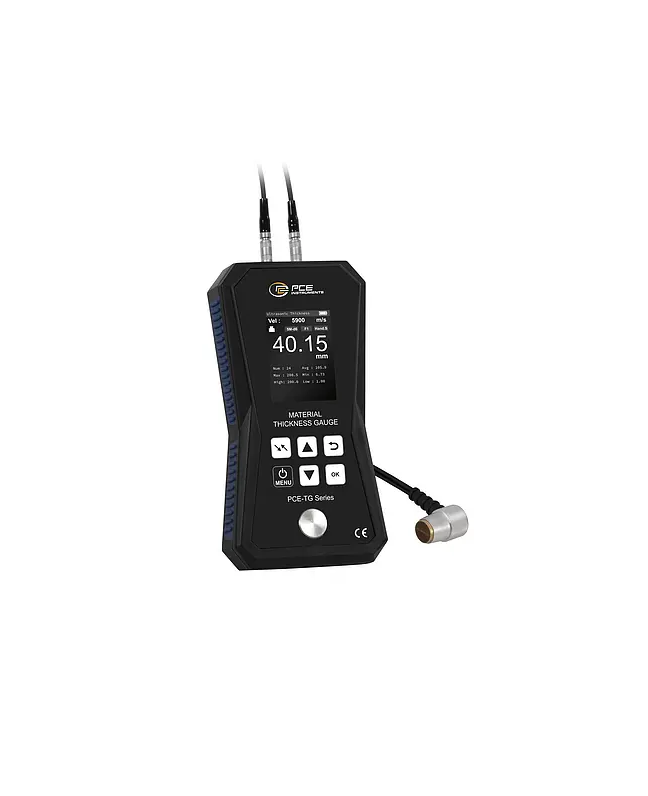

PCE PCE-TG 150A F25 ເຄື່ອງມວນຄວາມຫນາ (1.2 mm~99.99 mm, 100 mm~300 mm)

Material thickness

Measuring range: 1.2 mm ... 99.99 mm

Resolution: 0.01 mm

Accuracy: ±0.5% of reading + 0.05 mm

Material thickness

Measuring range: 100 mm ... 300 mm

Resolution: 0.1 mm

Accuracy: ±0.5% of reading + 0.05 mm

Sensor

Designation: PCE-TG 2.5M

Frequency: 2.5 MHz

Temperature range: -10 ... 60 °C

Measurable materials: Steel, aluminum, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials

Minimum diameter of pipes: 50 mm

Additional description: Thickness measurement of cast materials

Dimension : Ø 12mm x 28.3mm

Weight: 46 g

General technical data

Units: mm

Display type: TFT color display

Display size: 2.4 inches

Storage medium: Internal memory

Storage capacity: 1500 values

Automatic shutdown from...to : 2 ... 30 min.

Automatic shutdown can be deactivated : Yes

Adjustable speed of sound: 1000 ... 9999 m/s

Menu language: English (US), Chinese

Protection class (device): IP52

Weight: 230 g

Dimensions (L x W x H): 168 x 87 x 35 mm

Operating conditions : 0 ... 40 °C , 0 ... 90 % RH

Storage conditions: 0 ... 40 °C , 0 ... 90 % RH

Battery: 3x 1.5 V AA batteries, alkaline manganese

Capacity: 3000 mAh
