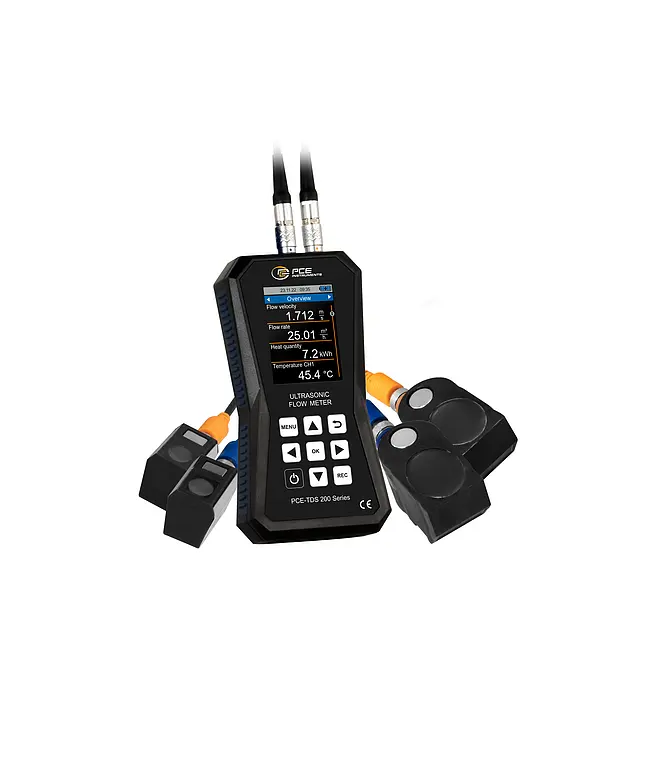

PCE PCE-TDS 200 SM ເຄື່ອງວັດການໄຫຼດ້ວຍຄື້ນສຽງຕຣາຊາວ (-32~+32 m/s)
Speed
Measurement range up to: -32 ... +32 m/s
Resolution: 0.001 m/s
Accuracy: DN ≥50 mm: ±1.5 % of Rd for velocities >0.3 m/s / DN <50 mm: ±3.5 % of
Rd for velocities >0.3 m/s
Ultrasonic sensor
Designation: PCE-TDS 200 S SENSOR
Pipe diameter: DN 15 ... 100 mm / Ø 20 ... 108 mm
Dimension: 45 x 30 x 30 mm
Frequency: 1 MHz
Operating temperature: -30 ... 160 °C
Sensor cable length: 5 m
Ultrasonic sensor
Designation: PCE-TDS 200 M SENSOR
Pipe diameter: DN 50 ... 700 mm / Ø 57 ... 720 mm
Dimension: 70 x 40 x 40 mm
Frequency: 1 MHz
Temperature: -30 ... 160 °C
Sensor cable length: 5 m
General technical data
Measuring functions: Flow velocity, Volume flow, Volume
Units: metric, imperial
Units additional information:
Dimensions: mm, in
Flow velocity: m/s, ft/s
Volume flow: m³, l, gal, igl, mgl, cf, bal, ib, ob
Volume: m³, l, gal, igl, mgl, cf, bal, ib, ob
Time specification: seconds, minutes, hours, days
Display size: 2,8 Inch
Storage medium: Internal memory
Storage capacity: 32 GB
Storage interval from: 1 s
Storage interval to: 12 h
Interface: USB-C
Pipe material:Steel, Cast iron, Stainless steel, Aluminium, Brass, Copper, PVC, Iron, Nickel, Titanium, Zinc, Acrylic, Polyethylene, Polypropylene, Nylon, User-defined (manual entry of the transversal sound velocity of the pipe material)
Operating time: 10 h
Automatic power-off from...to: 1 ... 15 min.
Automatic power-off can be deactivated: Yes
Measuring method: Z, V, N, W
Alarm: optical, Acoustic
Alarm modes: Undercut, overflow, within, beyond
Reproducibility: ±0.5 %
Menu language: Turkish, English, Polish, Spanish, German, Chinese, Russian,
Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device): IP52
Power supply: USB 5 VDC, 500 mA
Connector type: Device-europlug
Capacity: 2500 mAh
Operating conditions -20 ... 65 °C , 10 ... 95 % RH
Storage conditions -20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H ) 165 x 85 x 32 mm
Weight: 263.5 g
Includes:
1 x Ultrasonic Flow Meter PCE-TDS 200 SM
1 x Flow sensors PCE-TDS 200 S SENSOR (pair)
1 x flow sensors PCE-TDS 200 M SENSOR (pair)
2 x 5 m connection cable
2 x detachable cable ties
1 x power supply unit
1 x USB-C cable
1 x ultrasonic contact gel
1 x PCE measuring tape
1 x plastic case
1 x instruction manual
