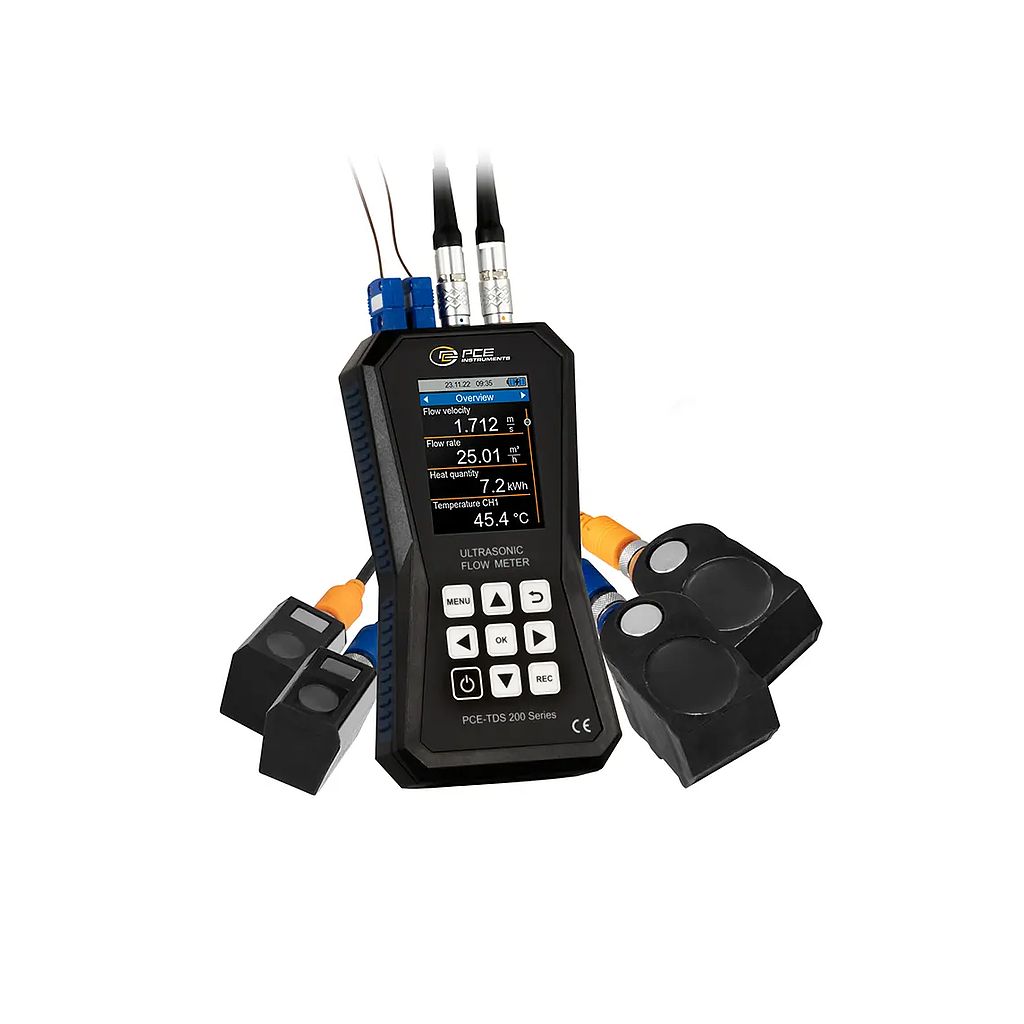

PCE PCE-TDS 200+ SM ເຄື່ອງວັດແທກການໄຫຼ Ultrasonic ແບບພົກພາ
Flow measurement
Measuring range: ±32 m/s
Accuracy: 0,001 m/s
Genauigkeit
DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s
DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s
Reproducibility: ±0.5 % of measured value
PCE-TDS 200 S SENSOR: Sensor pair
Pipe diameter: DN 15 ... 100 / 20 ... 108 mm
Temperature resistance: -30 ... 160 °C
Dimension: 45 x 30 x 30 mm
PCE-TDS 200 M SENSOR
Pipe diameter: DN 50 ... 700 / 57 ... 720 mm
Temperature resistance: -30 ... 160 °C
Resolution: 0.1 °C
Connectable thermocouples: B, E ,J ,K ,N ,R ,S ,T
Measuring parameters: flow rate, volume flow, volume, temperature, Heat output and heat quantity
Units (temperature): °C / °F
Units (heat quantity): K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu
Units (heat output): W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h
Menu: metrisch / imperial
Menu languages: German, English, French, Spanish, Italian, Dutch, Portuguese, Danish, Turkish, Polish, German Turkish, Polish, Russian, Chinese, Japanese
Operating and storage conditions:
Temperature: -20 ... +65 °C
Humidity: 10 ... 95 % r. h., non-condensing
Data logger: 32 GB memory capacity / 10 million measuring points
Unterface: USB (for online measurement, readout of the internal memory and for recharging the battery)
Protection class: IP52
Power supply Internal:
Internal: LiPo battery (3.7 V, 2500 mAh)
External: USB 5 VDC, 500 mA
Operating time: approx. 10 h
Dimensions: 165 x 85 x 32 mm
Weight: 255 g
