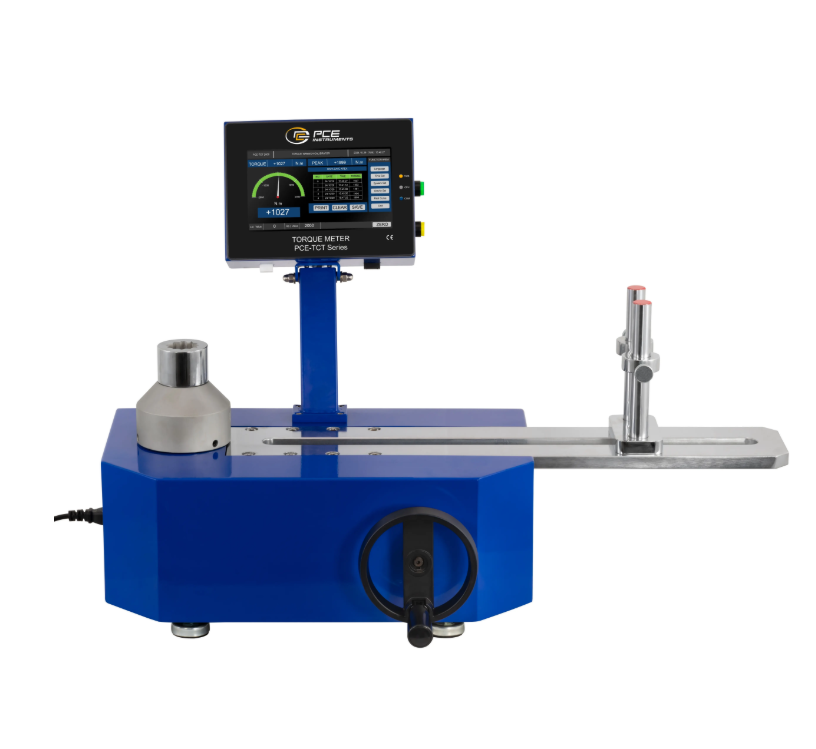

PCE PCE-TCT 2000 ເຄື່ອງທົດສອບວັດສະດຸ (2000 Nm; 20420 kgfcm; 17724 lbf-in)
Torque
Measurement range up to: 0.1 ... 2000 Nm
Resolution: 0.1 Nm
Accuracy: ±0.01 % of Rd
Torque
Measurement range up to: 1 ... 20420 kgfcm
Resolution: 0.1 kgfcm
Accuracy: ±0.01 % of Rd
Torque
Measurement range up to: 1 ... 17724 lbf-in
Resolution: 0.1 lbf-in
Accuracy: ±0.01 % of Rd
General technical data
Storage medium: Internal memory
Storage capacity: 999 Data records
Interface: USB, RJ45
Alarm: optical, Acoustic
Alarm modes: lower limit, upper limit
Dimensions: Length range: 250 ... 1800 mm
Angle of rotation: 0 ... 360 °
Max. lifting height: 150 mm
Menu language: English (GB), English, Chinese
Protection class (device): IP20
Power supply: 220 V AC | 50 Hz
Connector type: Schuko plug
Operating conditions: -10 ... 40 °C , 0 ... 90 % RH
Storage conditions: -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H ): 125 cm x 50 cm x 80 cm
Weight: 330 kg
Delivery Scope
1 x Material Tester PCE-TCT 2000
1 x multi-tooth adaptor
1 x 1/4" adaptor
1 x 3/8" adaptor
1 x 1/2" adaptor
1 x open-end wrench 17/19
1 x Allen key
1 x IEC cable
