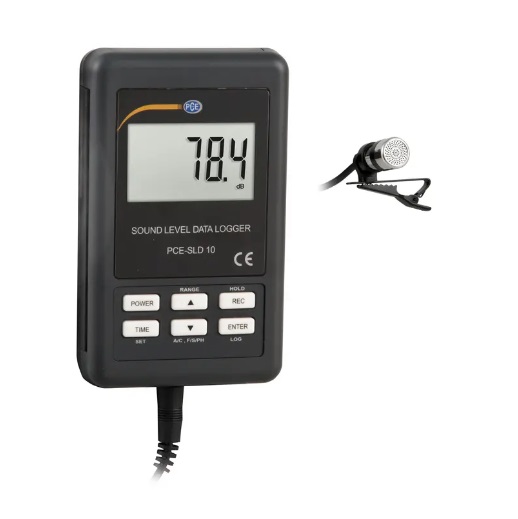

PCE SLD 10 ຕົວບັນທຶກຂໍ້ມູນລະດັບສຽງ (30~130 dB)
Measuring range: 30 ... 130 dB
Measurement accuracy: Based on class 2 according to IEC61672
Resolution: 0.1 dB
Frequency: A & C
Term review:
Fast: 125 ms
Slow: 1 s
Frequency range: 31.5 Hz ... 8 kHz
Measuring range selection:
30 ... 130 dB (auto)
30 ... 80 dB
50 ... 100 dB
80 ... 130 dB
Measurement functions:
Hold by pressing a button
Peak Hold
Max-Min
Analog output:4 ... 20-mA
Note: The scaling of the analog output depends on the selected measuring range.
Adjustment: Via optional calibrator in an internal menu
Data storage: SD card max 16 GB
Storage rate: 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s
Memory error: <0.1% of the total stored data
Refresh rate from the display: About 1 s
Interface: Serial, for live visualization on computers (Data cable SOFT-LUT-USB sold separately)
Power supply: 6 x 1.5V AAA batteries; 9V / 1 A power adapter
Automatic shutdown: After 10 minutes without operation; Disabled when in power supply mode
Operating conditions: 0 ... 50°C / 32 ... 122°F, max. 85 rh
Weight: About 230 g / < 1 lb
Dimensions:
Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in
Microphone: 12.5 x 32 mm
Cable length: approx. 120 cm
Delivery Scope:
1 x Sound level data logger PCE-SLD 10
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 ... 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual
