- Process stream:
Measuring range: +4-mA ... +20-mA
Accuracy: 0.3% of Mb.
Overload: 25mA
Signal type: active passive
Impedance: <2 Vdc voltage drop across terminals
Step response: <300 ms (0 ... 99% signal)
- Process voltage:
Measuring range: 0VDC...+10VDC
Accuracy: 0.3% of Mb.
Overload: 25VDC
Signal type: active passive
Iumpedance: greater than 1 MΩ
Step response: <300 ms (0 ... 99% signal)
- General technical data :
Display type: 7 segments, 2 digits
Security standard: CAT II / 300V
Protection class (device): IP30
Power supply: 24 ... 240V DC ±10%, 45 ... 65 Hz, isolated
Weight: 126g / 0.3 lbs
Device weight with scope of delivery : 130g / 0.3 lbs
Device weight including scope of delivery and outer packaging: 153g / 0.3 lbs
Dimensions (L x W x H): 110 x 22 x 118 mm / 4.3 x 0.9 x 4.6 in
Operating conditions: 0 ... 50°C / 32 ... 122°F, 95% RH
Storage conditions: -20 ... 70°C / -4 ... 158°F, 95% RH
Languages of the instructions: English
- Delivery scope:

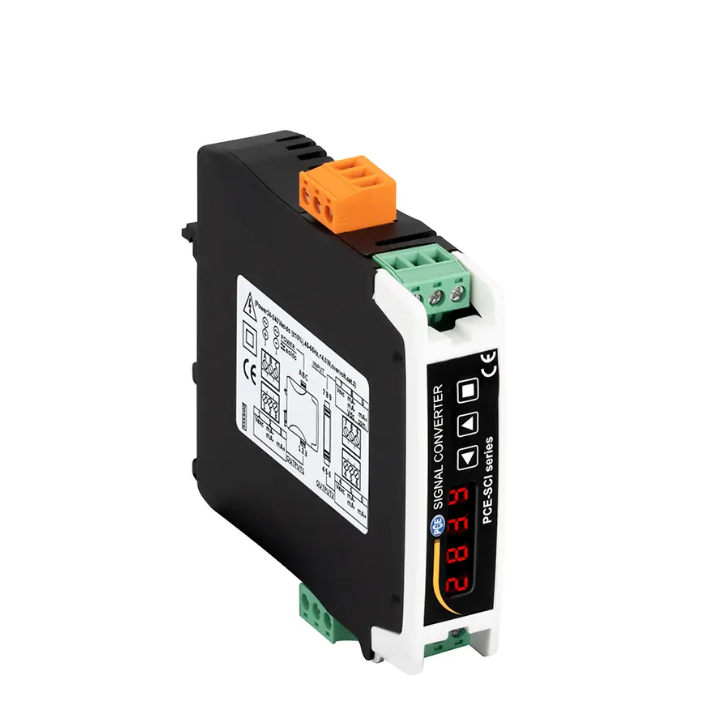

1 x Configurable transmitter PCE-SCI-D
1 x User Manual
