Measurement parameters: Ra, Rz, Rq, Rt
Measuring ranges:
Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin
Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
Radius probe tip: 5 µm/ 196.850 µin
Material probe tip: Diamond, 90° angled
Max. recommended force for static measurement: 4 mN (0.4 gf)
Radius longitudinal guide bar: 45 mm / 1.77"
Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum driving distance: 15 mm / 0.59"
Measuring principle: Inductive
Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
Testing speed:
0.135 mm/s at cut-off wavelength: 0.25 mm
0.5 mm/s at cut-off wavelength: 0.8 mm
1 mm/s at cut-off wavelength: 2.5 mm
Reversing speed: 1 mm/s
Measuring accuracy: < ± 10%
Repeatability: < 6%
Display: OLED
Units: μm / μinch (switchable)
Interface: Micro-USB, Bluetooth
Power supply: Rechargeable Li-ion battery
Dimensions L x W x H: 150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
Weight: 370 g / < 1 lb
Delivery Scope:

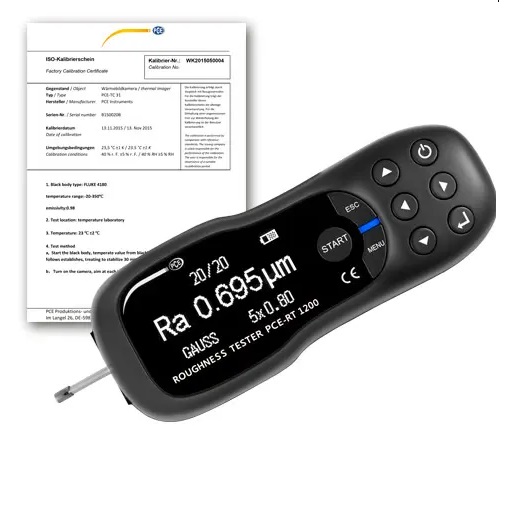

1 x Material Surface Roughness Tester PCE-RT 1200BT-ICA
1 x Micro-probe
1 x Downloadable Software
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Carrying case
1 x User manual
1 x ISO Calibration Certificate
