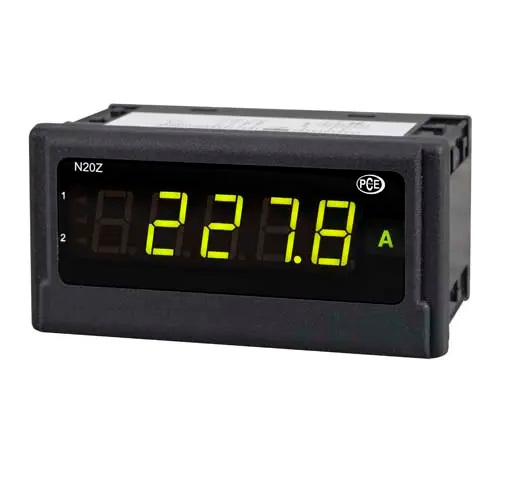

PCE N20Z ຕົວຊີ້ວັດພະລັງງານ (-19999~99999)

Input: 1 A, 5 A, 100 V, 250 V, 400 V

Input resistance: 2 MΩ

Accuracy (20 - 500 Hz): ± (0.5 % full scale + 1 dgt.)

Time for averaging: 0.5 ... 20 s

Outputs: 2x open collector, 30 V, 20 mA

Display: 5-digit 7-segment LED display, height: 14 mm / 0.55" tricolor

Display range: -19999 ... 99999

Ambient temperaturein operation: -10 °C ... 55 °C / 14 °F ... 131 °F

storage: -25 °C ... +85 °C / -13 °F ... 185 °F

Max. humidity: < 95 % non-condensing

Dimensions: 96 mm x 48 mm x 64 mm / 3.7 x 1.8 x 2.5"

Control panel cut-out: 92 mm x 45 mm / 3.6 x 1.7" (according to DIN)

Supply voltage: 85 ... 253 V AC/DC, 20 ... 40 V AC/DC

Power consumption: < 6 VA

Degree of protection: front: IP 65

Weight: < 250 g / 8.8 oz

Mounting: mounting clips with clamping screws, connection via terminal strip

Housing: robust plastic housing

The voltage display is electrically connected via the screw terminals on the back. An overview of the connections is located on the housing, enabling quick and safe on-site installation. The voltage display programming interface (PD14) is also located here. It is designed as a western socket. The programming adapter converts the data stream to a USB interface.

Delivery Scope:

1 x Power Indicator PCE-N20Z, fastening material, seal, operating instructions
