Resistance
Measuring range : 0 mΩ ... 200 mΩ
Resolution : 0.1 mΩ
Accuracy : ± 0.8% of VAT
Resistance
Measuring range : 0 mΩ ... 2000 mΩ
Resolution : 1 mΩ
Accuracy : ± 0.8% of VAT
Resistance
Measuring range : 0 Ω ... 20 Ω
Resolution : 10 mΩ
Accuracy : ±0.8% of VAT
Resistance
Measuring range : 0 Ω ... 200 Ω
Resolution : 0.1 Ω
Accuracy : ±0.8% of VAT
Resistance
Measuring range : 0 Ω ... 2000 Ω
Resolution : 1 Ω
Accuracy : ±0.8% of VAT
General technical data
Measurement functions : MIN, MAX, HOLD
Display type : LCD with illumination
Display size : 5.1 inch
Storage medium : Internal memory
Memory capacity : 200 measurements
Standard(s) : EN 61010-1, EN 61326-1
Automatic switch-off : 3 min
Safety standard : CAT III 300V
Fuse(s) : 200 mA / 600 V
Measurement method : 4-wire method for mΩ measurement
Test current : 100 mA: 200.0 mΩ / 2000 mΩ; 10 mA: 20.00 Ω / 200.0 Ω; 1 mA: 2000 Ω
Menu language : English
Protection class (device) : IP65
Protection class (additional information) : Only with closed lid
Weight : 1500 g
Dimensions (L x W x H) : 245 x 190 x 130 mm
Operating conditions : 0 ... 40 °C , 0 ... 80 % r.H
Storage conditions : 0 ... 40 °C , 0 ... 80 % r.H
Accumulator/battery : 8x 1.5 V LR14 , alkaline-manganese
Capacity : 7000 mAh
Delivery scope
1 x milliohmmeter PCE-MO 2006
4 x test leads
1 x carrying strap
8 x LR44 1.5 V batteries
1 x operating instructions

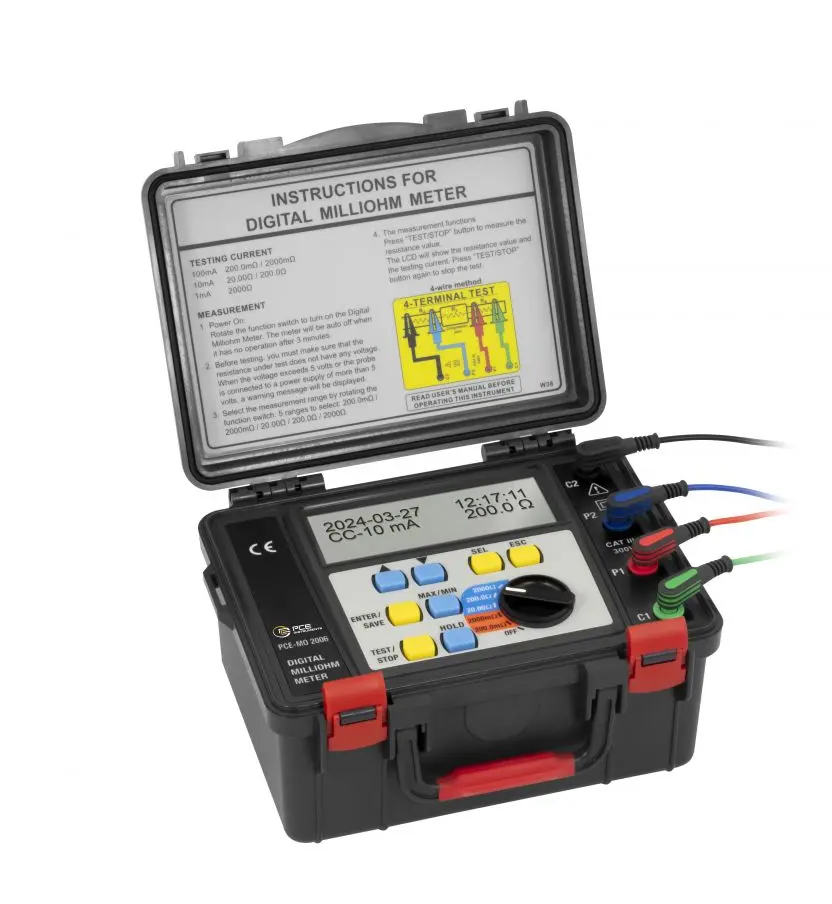

The milliohmmeter is a compact and precise measuring device with 5 selectable scale ranges for measuring resistances in the range from 0 mΩ . .. 2000 Ω. The use of the 4-wire measuring method enables a precise current flow through the measurement object while simultaneously measuring the voltage across it. Separate connections for current and voltage minimise errors and enable accurate resistance measurements.
Equipped with an integrated fuse (200 mA/600 V) and three test currents, it offers reliable protection and flexibility. The milliohmmeter complies with the CAT III 300V safety standard. The device has an internal memory that can store a maximum of 200 values, which can also be recalled via the display. In addition, the MAX/MIN/HOLD functions allow important values to be displayed. The milliohmmeter has a 5.1 inch LC display with backlighting. The robust housing (protection class IP65 with closed cover) enables use in harsh conditions, and the low battery indicator ensures the reliability of the device.
The milliohmmeter is a compact measuring device for precise resistance measurements in various industries.
