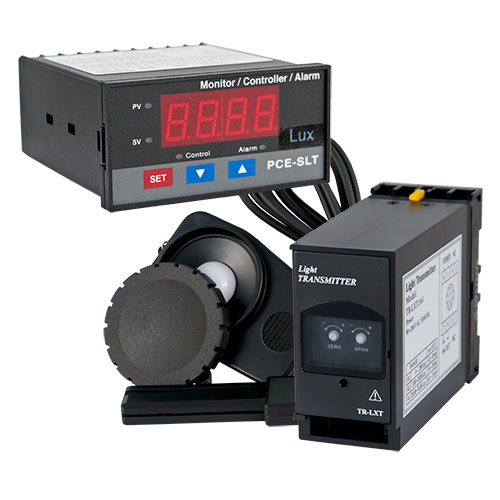

PCE LXT Lux ແມັດ (0~50000 lux)
Lux sensor
Measuring range: 0 ... 50000 lux in three areas
Resolution: 0.1 lx / 1 lx
Accuracy: ±5 % of reading
Sensor: Photo Diode with color correction filter according to C.I.E.
Supply: via transmitter
Cable length (sensor to transmitter): 1.5 m / 4.9 ft
Ambient conditions: max. 80 % relative humidity / 0 ... +50 °C (32 ... 122 °F)
Housing material: ABS plastic
Transmitter
Housing: ABS plastic
Supply: 90 … 260 ACV
Calibration: adjustable via grub screws
Output: 4 ... 20 mA
Degree of protection: IP 54
Ambient conditions: max. 85 % relative humidity / 0 ... +50 °C (32 ... 122 °F)
Digital display
Input signal from the transmitter: 4 – 20 mA
Display: -1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / selectable by the user)
Programming data (decimal point, limit value...): are stored in the device
Control output: 3-point (Com, NO, NC)
Alarm output: relay output: 5 A / 240 VAC
Supply: 90 ... 260 ACV / 50 ... 60 Hz
Dimensions / control panel cut-out according to DIN: 92 (+0.8) mm x 45 (+0.5) mm
Weight: ca. 250 g / 8.8 oz
Ambient conditions: max. 85 % relative humidity / 0 ... +50 °C (32 ... 122 °F)
Degree of protection: IP 65
Delivery Scope:
1 x Lux meter PCE-LXT
1 x Lux sensor on 1.5 m (4.9 ft) cable
1 x Light transmitter
1 x Digital display device
1 x Instruction manual
